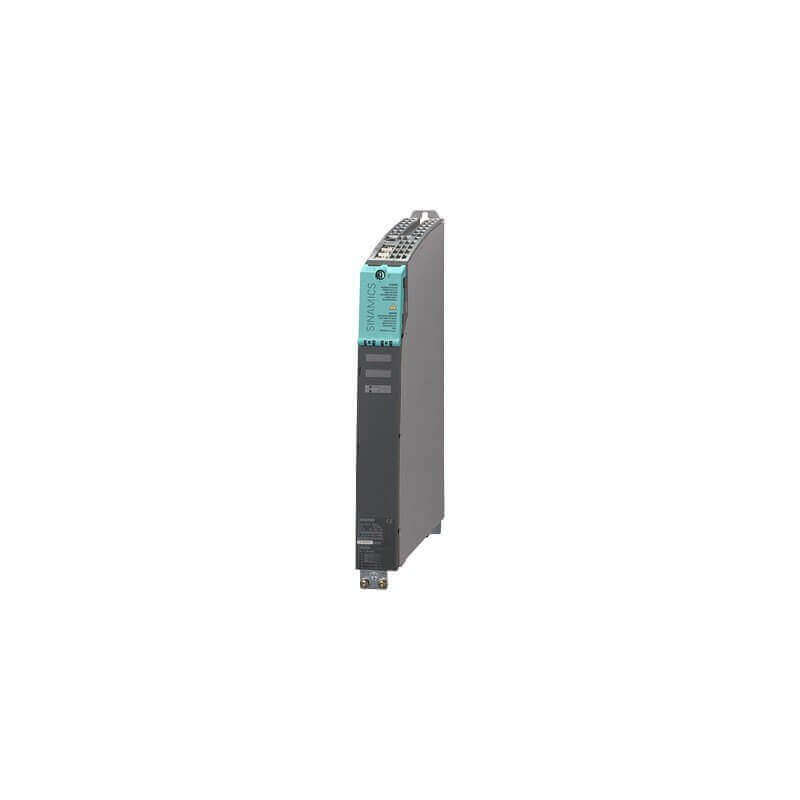

SIEMENS S120 6SL3420-1TE21-0AA1

SIEMENS S120 6SL3420-1TE21-0AA1

Product Overview

Model: 6SL3420-1TE21-0AA1

Classification: SINAMICS S120 Single Motor Module (Booksize Compact)

Purpose: Converts 600 V DC link into 3-phase AC output to drive one motor. Provides compact, high-efficiency motor conversion with integrated safety and communication support.

Electrical & Operational Specifications

Feature Specification Input / DC Link 600 V DC Output 3-phase, 400 V AC Rated Output Current 9 A Maximum Output Current 27 A (peak) DC Link Current 11 A Rated Power 4.8 kW Frequency Range (V/f mode) 0–600 Hz Frame / Format Booksize Compact Cooling Method Internal forced-air Pulse Technology Optimized pulse patterns Safety & Functions Supports higher-order safety functions; includes DRIVE-CLiQ interface

Physical & Installation Data

Feature Specification Dimensions (W × H × D) 50 × 270 × 226 mm Weight 2.7 kg Protection / Enclosure Open / Booksize (IP20 equivalent) Mounting Orientation Designed for vertical mounting with airflow clearance
