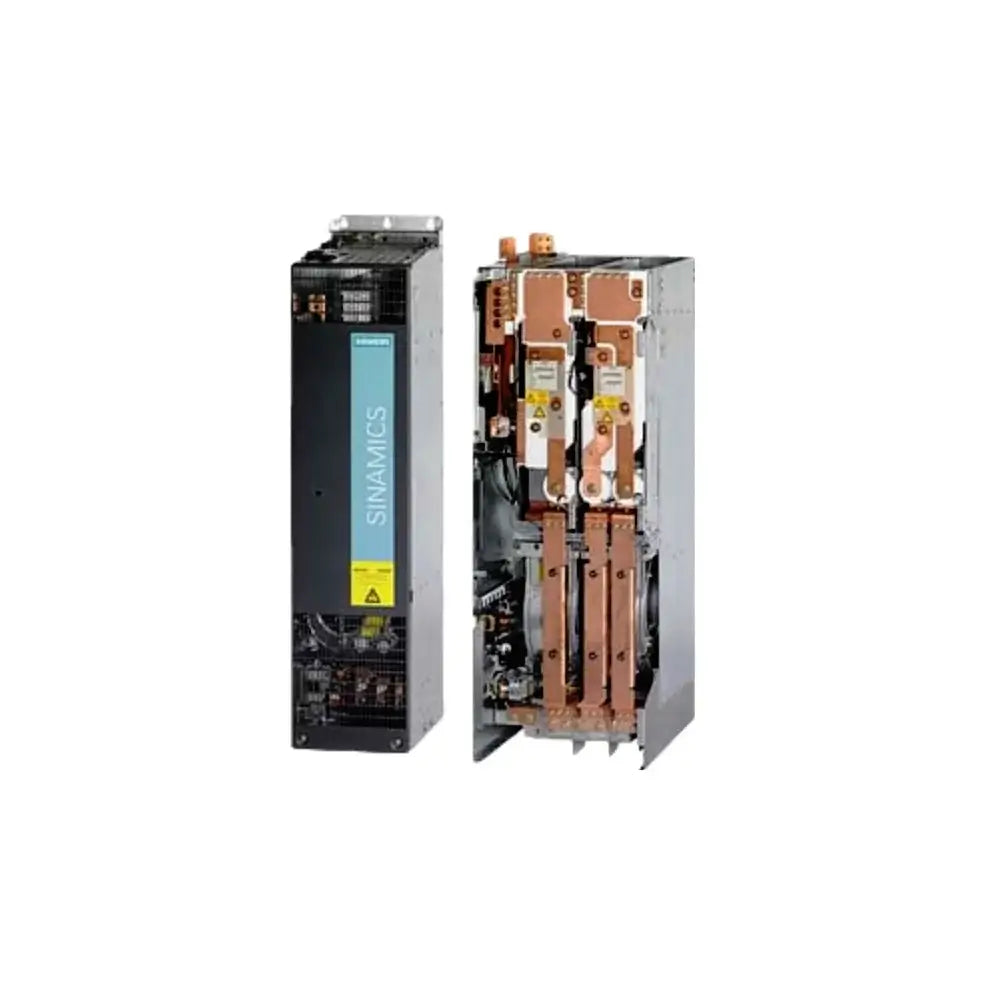

SIEMENS S120 6SL3320-1TE35-0AA3

Product Overview

Model: 6SL3320-1TE35-0AA3

Classification: SINAMICS S120 Single Motor Module (Chassis / Booksize)

Purpose: Converts a 600 V DC link into 3-phase AC output to drive a motor. Built for high current loads with internal air cooling and integrated DRIVE-CLiQ communication.

Electrical & Operational Specifications

• Input (DC Link): 600 V DC
• Output (AC): 3-phase, 400 V AC
• Rated Current: 490 A
• Rated Power: High-capacity motor drive for heavy-duty applications
• Frame / Format: Chassis internal, booksize format
• Cooling: Internal forced-air cooling
• Safety & Interface: Supports advanced safety functions; DRIVE-CLiQ communication included

Physical & Installation Specs

• Weight: ~152 kg
• Protection / Enclosure: Open / chassis-type (IP20 equivalent)
• Mounting Orientation: Vertical orientation with clear airflow path required

Interface & Connectivity

• DC Link Terminals: DC+, DC– supply connections
• Motor Output: 3-phase output terminals for single motor connection
• Control / Communication: DRIVE-CLiQ port for diagnostics, control, and synchronization within SINAMICS S120 systems

Summary Table

Feature Specification Model 6SL3320-1TE35-0AA3 Function S120 Single Motor Module DC Input 600 V DC AC Output 400 V AC, 490 A Cooling Internal forced-air Frame / Format Chassis internal, booksize design Weight ~152 kg Connectivity DC link, motor output, DRIVE-CLiQ interface
