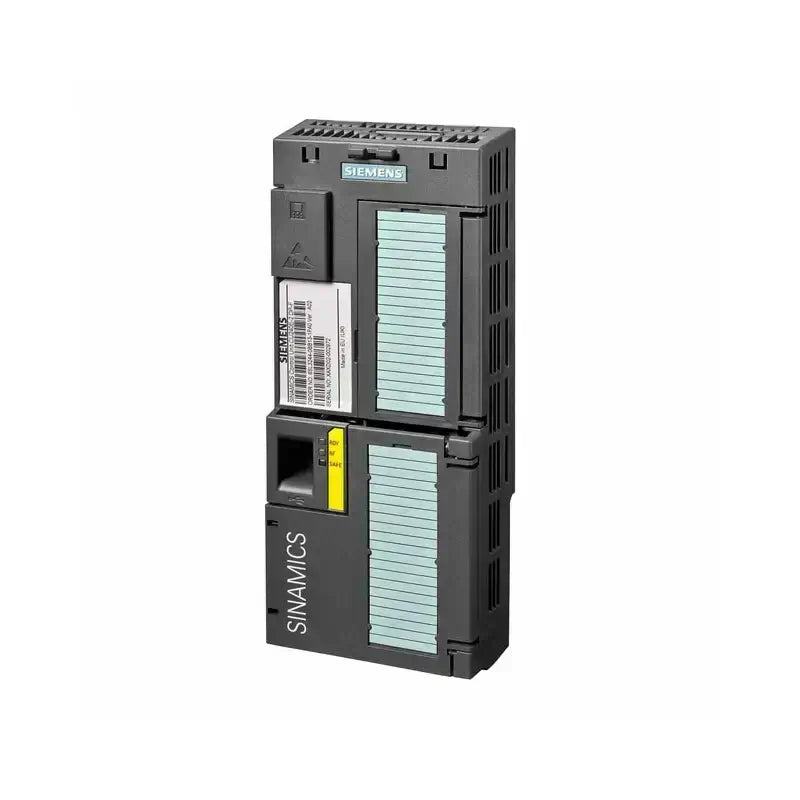

SIEMENS G120 6SL3243-0BB30-1FA0

SIEMENS G120 6SL3243-0BB30-1FA0

Product Overview

Model: 6SL3243-0BB30-1FA0

Classification: SINAMICS G120 Control Unit (CU230P-2 PN)

Purpose: Control module for G120 drive systems. Provides basic motor control, I/O, PROFINET communication, safety I/O, and integrated power supply outputs.

Electrical & Operational Specifications

• Supply Voltage (Control): 24 V DC
• Digital Inputs (DI): 6
• Digital Outputs (DO): 3
• Analog Inputs (AI): 4
• Analog Outputs (AO): 2
• Motor Temperature Sensor Input: 1
• Power Supply Outputs: 2 outputs (10 V DC, 24 V DC)
• Power Supply Input (PSU): 1 input (24 V DC)
• Interfaces / Fieldbus: PROFINET
• Protection / Enclosure Rating: IP20
• Net Weight: ~0.610 kg
• Dimensions (W × H × D): 73 × 199 × 65.5 mm

Interface & Connectivity

• Control / Communication: PROFINET interface for automation network integration
• I/O Functions: Standard and analog I/O for sensors, actuators, motor feedback
• Drive Integration: Connects to drive power modules via internal bus / DRIVE-CLiQ
• Auxiliary Features: USB and MMC interface support

Summary Table

Feature Specification Model 6SL3243-0BB30-1FA0 Function G120 Control Unit CU230P-2 PN Control Supply 24 V DC I/O (DI / DO / AI / AO) 6 DI / 3 DO / 4 AI / 2 AO Temp Sensor Input 1 motor temperature sensor input PSU Outputs / Inputs 2 PSU-Out / 1 PSU-In Fieldbus / Interface PROFINET Protection / Enclosure IP20 Weight ~0.610 kg Dimensions (W×H×D) 73 × 199 × 65.5 mm
