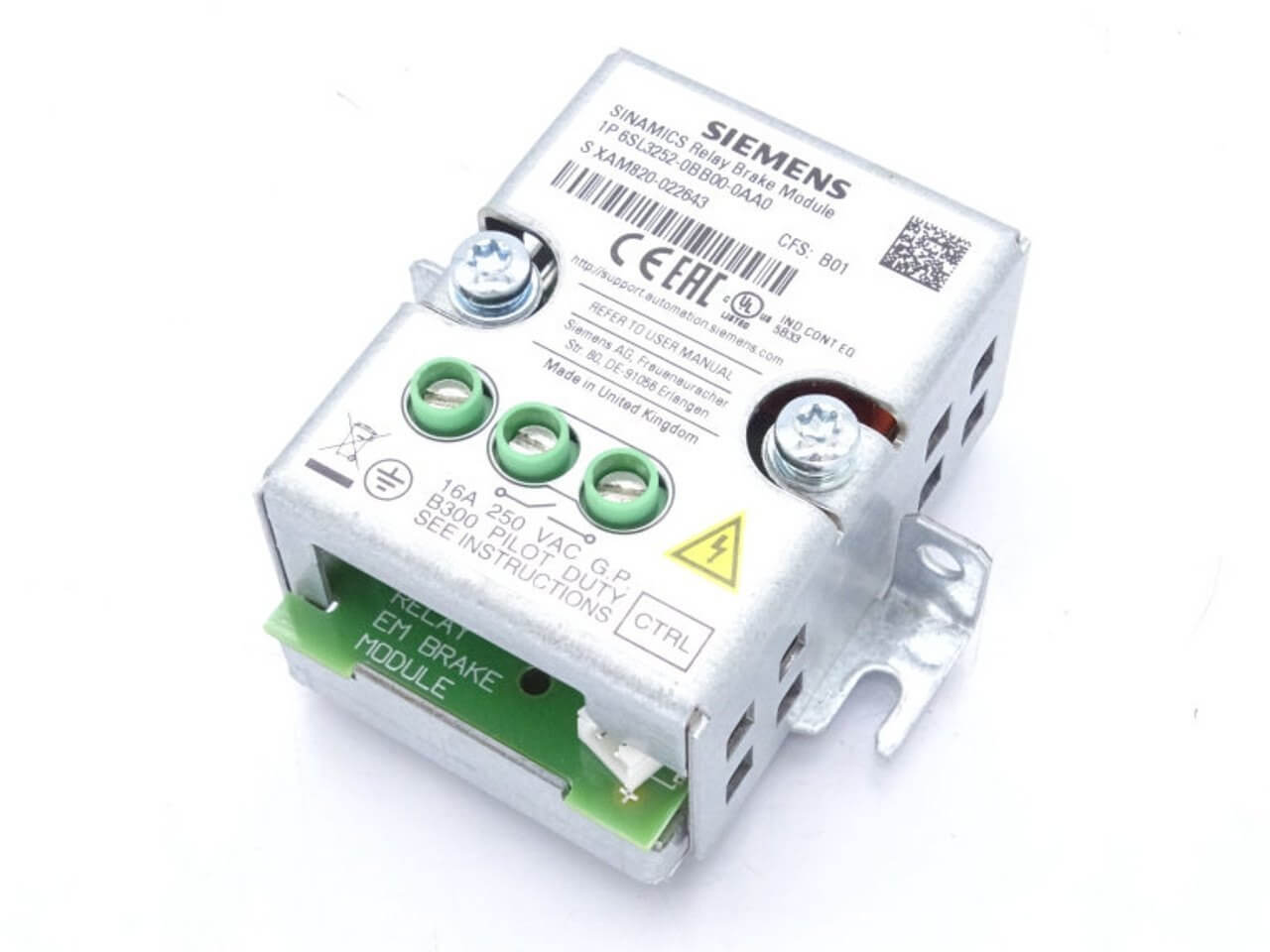

SIEMENS BRAKE RELAY 6SL3252-0BB00-0AA0

SIEMENS BRAKE RELAY 6SL3252-0BB00-0AA0

Product Overview

Model: 6SL3252-0BB00-0AA0

Classification: SINAMICS Brake Relay / Control Accessory

Purpose: Provides braking relay switching for drive systems. Acts as an interface to drive braking circuits (coil switching) under control of the drive system.

Electrical & Operational Specifications

• Supply Voltage (AC): 250 V AC
• Supply Voltage (DC): 30 V DC
• Consumed Current (at 230 V AC): 16.0 A
• Consumed Current (at 24 V DC): 12.0 A
• Max Conductor Size: 2.5 mm²
• Protection / Enclosure: IP20
• Type / Role: Relay for braking circuit control in SINAMICS systems

Physical & Mechanical Specifications

• Dimensions (W × H × D): 68 mm × 63 mm × 33 mm
• Net Weight: ~0.17 kg

Interface & Connectivity

• Relay Outputs / Contacts: Switchable outputs for brake circuits
• Connectivity: Screw terminals for power supply and relay outputs

Summary Table

Feature Specification Model 6SL3252-0BB00-0AA0 Function SINAMICS Brake Relay Supply Voltages 250 V AC / 30 V DC Current Draw 16 A (230 V AC) / 12 A (24 V DC) Dimensions (W×H×D) 68 × 63 × 33 mm Net Weight ~0.17 kg Protection / Enclosure IP20 Application Switching / controlling drive brake circuits
