SCHNEIDER ELECTRIC-ATS480C41Y-

Schneider Electric-ATS480C41Y

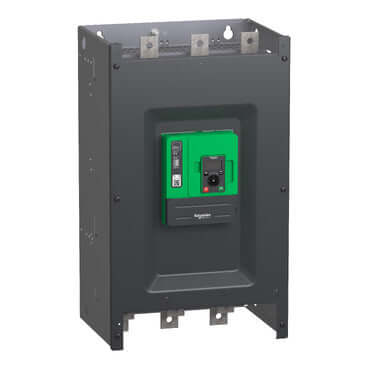

The Schneider Electric ATS480C41Y Soft Starter is a robust, high-performance motor control solution engineered for torque-controlled acceleration and deceleration. Designed for demanding industrial applications, this surplus automation equipment ensures energy-efficient motor starting, extended equipment lifespan, and dependable protection under heavy-duty operation.

At ReVolt Automation, we supply new surplus Schneider Electric Soft Starters that are factory-sealed, tested, and backed by a 1-year limited warranty — providing industrial reliability and performance at competitive value.

⚙️ Electrical Specifications

• Rated Supply Voltage (Us): 208–690 V AC
• Supply Frequency: 50 / 60 Hz
• Control Circuit Voltage (Uc): 110–230 V AC
• Rated Output Current (Icl): 410 A
• Motor Power (AC-3): 110 kW @ 230 V • 220 kW @ 400 V • 400 kW @ 690 V
• Utilization Category: AC-53A
• Overload Capacity: 4 × In for 10 seconds
• Start / Stop Method: Torque control with adjustable current limit
• Bypass Contactor: Integrated (internal)
• Efficiency: Built-in bypass reduces heat and power loss during steady operation

🔌 Control, I/O & Communication

• Logic Inputs: 3 × LI (LI1, LI2, LI3) – 5 mA, 4.3 kΩ impedance
• Relay Outputs: 2 configurable (Run, Trip, Fault, Ready)
• Relay Contact Ratings: 5 A @ 250 V AC / 2 A inductive
• PTC Input: 750 Ω (motor thermal protection)
• Communication Interface: RS-485 (Modbus RTU)
• Transmission Rates: 4,800 / 9,600 / 19,200 bps
• Control Options: Local or remote operation via wired I/O or Modbus network

🌡️ Environmental & Protection Ratings

• Protection Degree: IP00 (open frame)
• Cooling Method: Forced convection
• Operating Temperature: –15 °C to +40 °C (full rating)
• Derating Above 40 °C: 2 % per °C
• Storage Temperature: –25 °C to +70 °C
• Altitude Rating: ≤ 1,000 m (no derating); > 1,000 m apply 2 % per 100 m
• Pollution Degree: 2 (industrial environments)
• Noise Level: ≈ 56 dB
• Compliance: IEC 60947-4-2 and UL standards

🧱 Mechanical Specifications

• Frame Size: C (industrial heavy-duty frame)
• Dimensions (H × W × D): 480 × 320 × 277 mm (approx.)
• Weight: ≈ 52 kg
• Mounting Orientation: Vertical ± 10°
• Ventilation: Bottom-to-top airflow; maintain clearance for cooling

⭐ Key Features & Highlights

• Torque-controlled acceleration and deceleration for smooth operation
• Integrated bypass contactor minimizes heat and energy loss
• Wide 208–690 V range for global voltage compatibility
• Built-in protection for overload, stall, thermal, and phase faults
• RS-485 Modbus communication for diagnostics and system integration
• Compact open-frame design fits easily into control cabinets
• Ideal for heavy-duty applications including pumps, fans, and compressors

🏭 ReVolt Automation – Industrial Surplus Experts

ReVolt Automation provides premium surplus automation equipment from leading global brands such as Schneider Electric, Siemens, and ABB. The Schneider Electric ATS480C41Y Soft Starter is available as new surplus, factory-sealed inventory with fast worldwide shipping and full warranty coverage.

Condition: New surplus, factory sealed

Warranty: 1-year limited warranty
