SCHNEIDER ELECTRIC-ATS480C11Y-

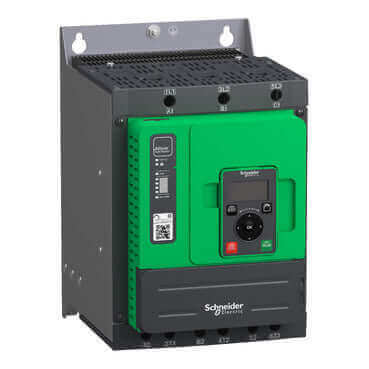

Schneider Electric-ATS480C11Y

The Schneider Electric ATS480C11Y Soft Starter is designed for efficient and reliable motor control in demanding industrial environments. It delivers smooth, torque-controlled acceleration and deceleration to reduce mechanical stress and extend motor life. This surplus automation equipment is ideal for applications such as pumps, fans, and conveyors requiring high-performance motor management.

⚙️ Electrical Specifications

• Rated Supply Voltage (Us): 208–690 V AC
• Supply Frequency: 50 / 60 Hz
• Control Circuit Voltage (Uc): 110–230 V AC
• Rated Output Current (Icl): 110 A
• Motor Power (AC-3): 30 kW @ 230 V • 55 kW @ 400 V • 90 kW @ 690 V
• Utilization Category: AC-53A
• Overload Capacity: 4 × In for 10 seconds
• Start / Stop Method: Torque control with adjustable current limit
• Bypass Contactor: Integrated (internal)
• Insulation Voltage (Ui): 690 V AC
• Efficiency: Internal bypass reduces energy loss during steady-state operation

🔌 Control, I/O & Communication

• Logic Inputs: 3 × LI (LI1, LI2, LI3) – 5 mA, 4.3 kΩ impedance
• Relay Outputs: 2 × R (R1, R2) configurable for Run, Trip, Fault, Ready
• Relay Ratings: 5 A @ 250 V AC / 2 A (inductive)
• Minimum Switching Current: 100 mA @ 12 V DC
• PTC Input: 750 Ω (motor thermal protection)
• Communication Interface: RS-485 (Modbus RTU)
• Transmission Rates: 4,800 / 9,600 / 19,200 bps
• Control Options: Local or remote via I/O or Modbus

🌡️ Environmental & Protection Ratings

• Protection Degree: IP00 (open-frame heatsink)
• Cooling Method: Forced convection
• Operating Temperature: –15 °C to +40 °C (full rating)
• Derating Above 40 °C: 2 % per °C
• Storage Temperature: –25 °C to +70 °C
• Altitude Rating: ≤ 1,000 m (no derating); > 1,000 m apply 2 % per 100 m
• Pollution Degree: 2 (industrial environments)
• Vibration / Shock: 1 g (13–200 Hz) / 15 g, 11 ms
• Noise Level: ≈ 56 dB
• Compliance: IEC 60947-4-2 and UL standards

🧱 Mechanical Specifications

• Frame Size: C (compact industrial frame)
• Dimensions (H × W × D): 340 × 200 × 272 mm (approx.)
• Weight: ≈ 11.5 kg
• Mounting Orientation: Vertical ± 10°
• Ventilation: Bottom-to-top airflow; ensure clearance for cooling

⭐ Key Features & Highlights

• Smooth, torque-controlled acceleration and deceleration
• Integrated bypass contactor for reduced heat and energy loss
• Wide operating range (208–690 V) for global compatibility
• Advanced motor protection: overload, stall, and phase loss
• RS-485 Modbus communication for setup and system integration
• Compact, panel-friendly design for industrial control panels
• Compliant with IEC and UL international standards

🏭 ReVolt Automation – Industrial Surplus Experts

ReVolt Automation provides high-quality surplus automation equipment, including the Schneider Electric ATS480C11Y Soft Starter, along with premium control components from ABB, Siemens, and Allen-Bradley. Every unit is new surplus, factory-sealed, and ships fast worldwide.

Condition: New surplus, factory sealed

Warranty: 1-year limited warranty
