SCHNEIDER ELECTRIC-ATS22D88Q-

Schneider Electric-ATS22D88Q

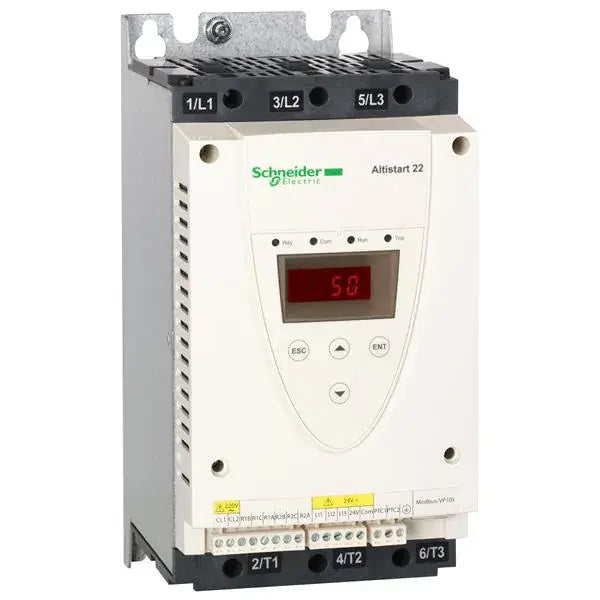

The Schneider Electric ATS22D88Q Soft Starter delivers advanced torque-controlled motor starting and stopping for reliable, energy-efficient operation. Designed for 3-phase induction motors, it minimizes mechanical stress and electrical surges while improving overall system longevity. This surplus automation equipment is ideal for pumps, compressors, conveyors, and other industrial machinery requiring dependable motor control.

⚙️ Electrical Specifications

• Rated Supply Voltage (Us): 230–440 V AC
• Supply Voltage Limits: 195–484 V AC
• Rated Output Current (Icl): 88 A
• Factory Setting Current: 81 A
• Motor Power (AC-3): 22 kW @ 230 V • 45 kW @ 400–440 V
• Power Dissipation: ~66 W
• Start Mode: Torque control (limited to 3.5 × In)
• Utilization Category: AC-53A
• Bypass Contactor: Integrated (internal)
• Control Circuit Voltage (Uc): 230 V AC
• Control Circuit Power Consumption: ~20 W
• Frequency: 50 / 60 Hz

🔌 Control, I/O & Communication

• Logic Inputs: 3 × LI (LI1, LI2, LI3) — 5 mA each, 4.3 kΩ impedance
• Relay Outputs: 2 × R (R1, R2) configurable for status, alarm, run, or trip
• Relay Contact Ratings: 5 A @ 250 V AC (resistive) / 2 A (inductive)
• Minimum Switching Current: 100 mA @ 12 V DC
• PTC Input: 750 Ω (motor thermal protection)
• Communication Interface: RS-485 (Modbus RTU)
• Transmission Speeds: 4,800 / 9,600 / 19,200 bps

🌡️ Environmental & Protection Ratings

• Protection Degree: IP20 (open frame)
• Cooling Method: Forced convection (heatsink)
• Operating Temperature: –10 °C to +40 °C (full rating)
• Derating Above 40 °C: 2.2 % per °C
• Storage Temperature: –25 °C to +70 °C
• Altitude Rating: ≤ 1,000 m (no derating); above 1,000 m apply 2.2 % per 100 m
• Vibration / Shock: 1 g (13–200 Hz) / 15 g, 11 ms
• Noise Level: ≈ 56 dB
• Pollution Degree: 2 (IEC 60664-1 compliant)

🧱 Mechanical Specifications

• Frame Size: D (standard industrial frame)
• Dimensions (H × W × D): 295 × 145 × 207 mm
• Weight: ≈ 12 kg
• Mounting Orientation: Vertical ± 10°
• Ventilation: Bottom-to-top airflow; maintain adequate clearance for cooling

⭐ Key Features & Highlights

• Smooth torque-controlled acceleration and deceleration
• Integrated bypass contactor reduces energy loss and heat generation
• Wide 230–440 V operating range for versatile installations
• Built-in motor protection: overload, stall, and phase monitoring
• RS-485 Modbus RTU communication for remote monitoring and setup
• Compact, panel-friendly design for industrial control systems
• Certified to IEC and UL standards for global use

🏭 ReVolt Automation – Industrial Surplus Experts

ReVolt Automation specializes in surplus automation equipment, including the Schneider Electric ATS22D88Q Soft Starter and other premium control components from Siemens, ABB, and Allen-Bradley. All units are factory-sealed, new surplus, and ready for fast worldwide shipping.

Condition: New surplus, factory sealed

Warranty: 1-year limited warranty
