SCHNEIDER ELECTRIC-ATS22D17Q-

Schneider Electric-ATS22D17Q

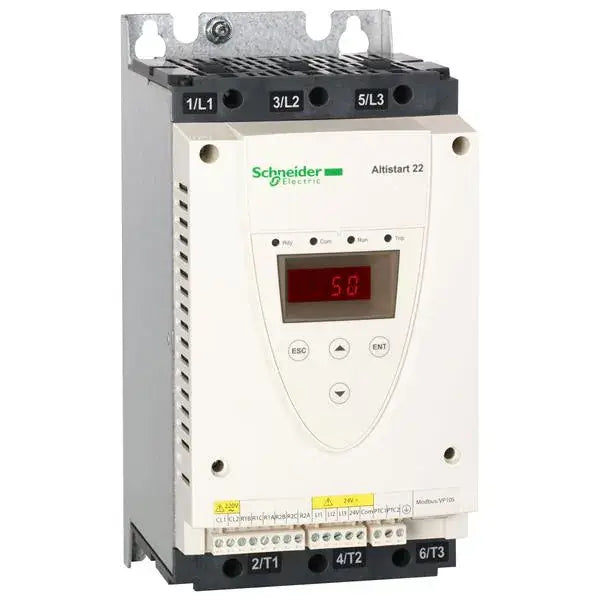

The Schneider Electric ATS22D17Q Soft Starter provides efficient, torque-controlled motor starting and stopping for compact industrial systems. Designed to reduce electrical stress and mechanical wear, this surplus automation equipment offers a reliable and energy-efficient solution for smaller 3-phase motor applications such as fans, pumps, and conveyors.

⚙️ Electrical Specifications

• Rated Supply Voltage (Us): 230–440 V AC (–15% / +10%)
• Supply Voltage Limits: 195–484 V AC
• Rated Output Current (Icl): 17 A (line connection)
• Factory Setting Current: 14.8 A
• Motor Power (AC-3): 4 kW @ 230 V • 7.5 kW @ 400–440 V
• Power Dissipation: ~39 W (typical operation)
• Start Mode: Torque control (current-limited to 3.5 × In)
• Utilization Category: AC-53A
• Bypass Contactor: Integrated (internal)
• Control Circuit Voltage (Uc): 230 V AC
• Control Circuit Consumption: ~20 W
• Frequency: 50 / 60 Hz (±10%)

🔌 Control & I/O

• Logic Inputs: 3 × LI (LI1, LI2, LI3) – 5 mA, 4.3 kΩ impedance
• Relay Outputs: 2 × R (R1, R2) configurable for status, alarm, or run signals
• Relay Contact Ratings: 5 A @ 250 V AC (resistive) / 2 A (inductive)
• Minimum Switching Current: 100 mA @ 12 V DC
• PTC Input: 750 Ω (motor thermal protection)
• Communication Interface: RS-485 (Modbus RTU) via RJ-45 connector
• Supported Baud Rates: 4,800 / 9,600 / 19,200 bps

🌡️ Environmental & Protection Ratings

• Protection Degree: IP20 (open type with heat sink)
• Cooling Method: Forced convection
• Operating Temperature: –10 °C to +40 °C (full rating)
• Derating Above 40 °C: 2.2 % per °C
• Storage Temperature: –25 °C to +70 °C
• Altitude Rating: ≤ 1,000 m (no derating); above 1,000 m apply 2.2 % per 100 m
• Noise Level: ~45 dB
• Vibration / Shock Resistance: 1 g (13–200 Hz) / 15 g, 11 ms
• Pollution Degree: 2 (IEC 60664-1 compliant)
• Compliance: IEC 60947-4-2 and UL certified

🧱 Mechanical Specifications

• Frame Size: D (compact model)
• Height: 265 mm
• Width: 130 mm
• Depth: 169 mm
• Weight: ~7 kg
• Mounting Orientation: Vertical ±10°
• Airflow Clearance: Ensure bottom-to-top ventilation; do not stack units

⭐ Key Features & Highlights

• Smooth, torque-controlled acceleration and deceleration
• Integrated internal bypass contactor for reduced heat and energy loss
• Compact 17 A model ideal for low-to-mid power 3-phase motors
• Built-in overload, stall, and phase-loss motor protection
• RS-485 Modbus RTU communication via RJ-45 for system integration
• Global voltage compatibility (230–440 V AC)
• Certified to IEC and UL standards for industrial use

🏭 ReVolt Automation – Industrial Surplus Experts

ReVolt Automation delivers high-quality surplus automation equipment, including the Schneider Electric ATS22D17Q Soft Starter and a full range of industrial control products from Siemens, ABB, and Allen-Bradley. All units are new surplus, factory-sealed, and ready for fast worldwide shipping.

Condition: New surplus, factory sealed

Warranty: 1-year limited warranty
