SCHNEIDER ELECTRIC-ATS22C48Q-

Schneider Electric-ATS22C48Q

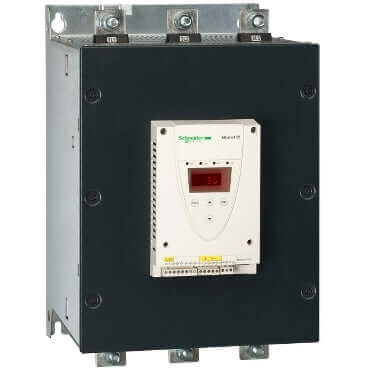

The Schneider Electric ATS22C48Q Soft Starter provides smooth, torque-controlled starting and stopping for high-power 3-phase motors in demanding industrial environments. Designed for precision and longevity, it minimizes electrical stress, reduces mechanical shock, and enhances energy efficiency.

⚙️ Electrical Specifications

• Rated Supply Voltage (Us): 208 … 690 V AC
• Supply Frequency: 50 / 60 Hz
• Control Circuit Voltage (Uc): 110 … 230 V AC
• Rated Output Current (Icl): 410 A
• Motor Power (AC-3):
• • 110 kW @ 230 V
• • 220 kW @ 400 V
• • 400 kW @ 690 V
• Utilization Category: AC-53A
• Overload Capacity: 4 × In for 10 seconds
• Start / Stop Method: Torque control with adjustable current limit
• Bypass Contactor: Integrated (internal)
• Insulation Voltage (Ui): 690 V AC
• Control Circuit Power Consumption: ~20 W
• Efficiency: Built-in bypass reduces power loss during steady-state operation

🔌 Control, I/O & Communication

• Logic Inputs: 3 × LI (LI1, LI2, LI3) – 5 mA, 4.3 kΩ impedance
• Relay Outputs: 2 × R (R1, R2) configurable for Run, Trip, Fault, Ready
• Relay Ratings: 5 A @ 250 V AC (resistive) / 2 A (inductive)
• Minimum Switching Current: 100 mA @ 12 V DC
• PTC Input: 750 Ω (motor thermal protection)
• Communication Interface: RS-485 (Modbus RTU)
• Transmission Rates: 4,800 / 9,600 / 19,200 bps
• Control Options: Local or remote operation via wired I/O or Modbus network

🌡️ Environmental & Protection Ratings

• Protection Degree: IP00 (open frame design)
• Cooling Method: Forced convection
• Operating Temperature: –15 °C to +40 °C (full rating)
• Derating Above 40 °C: 2 % per °C
• Storage Temperature: –25 °C to +70 °C
• Altitude Rating: ≤ 1,000 m (no derating); above 1,000 m apply 2 % per 100 m
• Pollution Degree: 2 (industrial environments)
• Vibration / Shock Resistance: 1 g (13–200 Hz) / 15 g, 11 ms
• Noise Level: ≈ 56 dB
• Compliance: IEC 60947-4-2 and UL standards

🧱 Mechanical Specifications

• Frame Size: C (industrial heavy-duty frame)
• Dimensions (H × W × D): 480 mm × 320 mm × 277 mm (approx.)
• Weight: ≈ 52 kg
• Mounting Orientation: Vertical ±10°
• Ventilation: Bottom-to-top airflow; maintain adequate clearance for cooling

⭐ Key Features & Highlights

• Smooth, torque-controlled acceleration and deceleration for large motors
• Integrated bypass contactor reduces energy loss and heat generation
• Wide 208–690 V supply range for global compatibility
• Comprehensive motor protection: overload, stall, phase loss, and thermal
• RS-485 Modbus communication for advanced diagnostics and control
• Compact open-frame construction ideal for panel integration
• Designed for continuous industrial operation under demanding conditions

🏭 ReVolt Automation – Industrial Surplus Experts

ReVolt Automation supplies new, factory-sealed Schneider Electric ATS22C48Q Soft Starters and other high-quality surplus automation equipment from leading brands like ABB, Siemens, and Allen-Bradley. All units are backed by a 1-year limited warranty and ship fast worldwide.

Condition: New surplus, factory sealed

Warranty: 1-year limited warranty
