SCHNEIDER ELECTRIC-ATS22C25Q-

Schneider Electric-ATS22C25Q

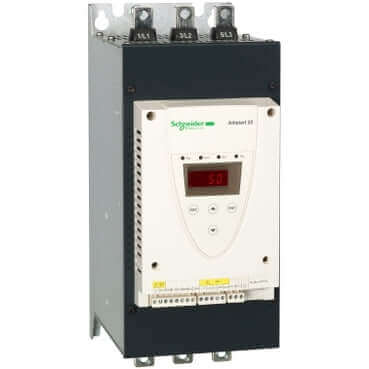

The Schneider Electric ATS22C25Q Soft Starter provides reliable torque-controlled motor starting for industrial applications where smooth acceleration, reduced inrush current, and system protection are critical. Designed for continuous performance and simplified integration, it includes an internal bypass contactor and supports voltages up to 440 V AC for worldwide use.

⚙️ Electrical Specifications

• Rated Supply Voltage (Us): 230 … 440 V AC (–15 % / +10 %)
• Supply Voltage Limits: 195 … 484 V AC
• Rated Output Current (Icl): 250 A (motor supply line rating)
• Motor Power (AC-3): 75 kW @ 230 V • 132 kW @ 400 / 440 V
• Factory Setting Current: 233 A
• Power Dissipation: ≈ 129 W (standard operation)
• Start Mode: Torque control (current limited to 3.5 × In)
• Category: AC-53A
• Bypass: Integrated internal bypass contactor
• Control Voltage (Uc): 230 V AC (–15 % / +10 %)
• Control Circuit Consumption: ≈ 20 W

🔌 Control, I/O & Communication

• Logic Inputs: 3 (LI1 / LI2 / LI3) – ≈ 5 mA input current, 4.3 kΩ impedance
• Relay Outputs: 2 (R1, R2), C/O type programmable for status, alarm, or run
• Minimum Switching Current: 100 mA @ 12 V DC
• Maximum Switching Current: 5 A @ 250 V AC (resistive); 2 A @ 250 V AC (inductive)
• PTC Probe Input: 750 Ω (for motor thermal protection)
• Communication Interface: RS-485 (Modbus protocol) via RJ-45 connector
• Supported Baud Rates: 4 800 / 9 600 / 19 200 bps

🌡️ Environmental & Protection Ratings

• Protection Degree: IP00 (open frame design)
• Cooling Method: Forced convection with heatsink
• Operating Temperature: –10 °C to +40 °C (full rating)
• Derating Above 40 °C: 2.2 % per °C
• Storage Temperature: –25 °C to +70 °C
• Altitude Rating: ≤ 1 000 m (no derating); up to 2 000 m with derating
• Noise Level: ≈ 56 dB
• Vibration / Shock: 1 g (13–200 Hz); 15 g, 11 ms
• Pollution Degree: 2 (IEC 60664-1)
• Compliance: IEC 60947-4-2 and UL standards

🧱 Mechanical Specifications

• Frame / Style: Heat-sink / open frame design
• Dimensions (H × W × D): 425 mm × 206 mm × 299 mm
• Weight: ≈ 33 kg
• Mounting Orientation: Vertical ± 10° allowed
• Ventilation: Bottom-to-top airflow; maintain clearance and avoid stacking

⭐ Key Features & Highlights

• Torque-controlled start and stop to extend motor life
• Integrated bypass for reduced heat and energy loss
• Wide 230–440 V input range for global compatibility
• RS-485 (Modbus) communication for monitoring and diagnostics
• Compact design ideal for industrial panels and retrofits
• Comprehensive motor protection (overload, stall, phase loss, thermal)
• Designed for reliability in continuous-duty environments

🏭 ReVolt Automation – Industrial Surplus Experts

ReVolt Automation provides top-tier surplus automation equipment, including the Schneider Electric ATS22C25Q Soft Starter, plus premium solutions from Siemens, ABB, and Allen-Bradley. All units are new surplus, factory-sealed, and ship fast worldwide with a 1-year limited warranty.

Condition: New surplus, factory sealed

Warranty: 1-year limited warranty
