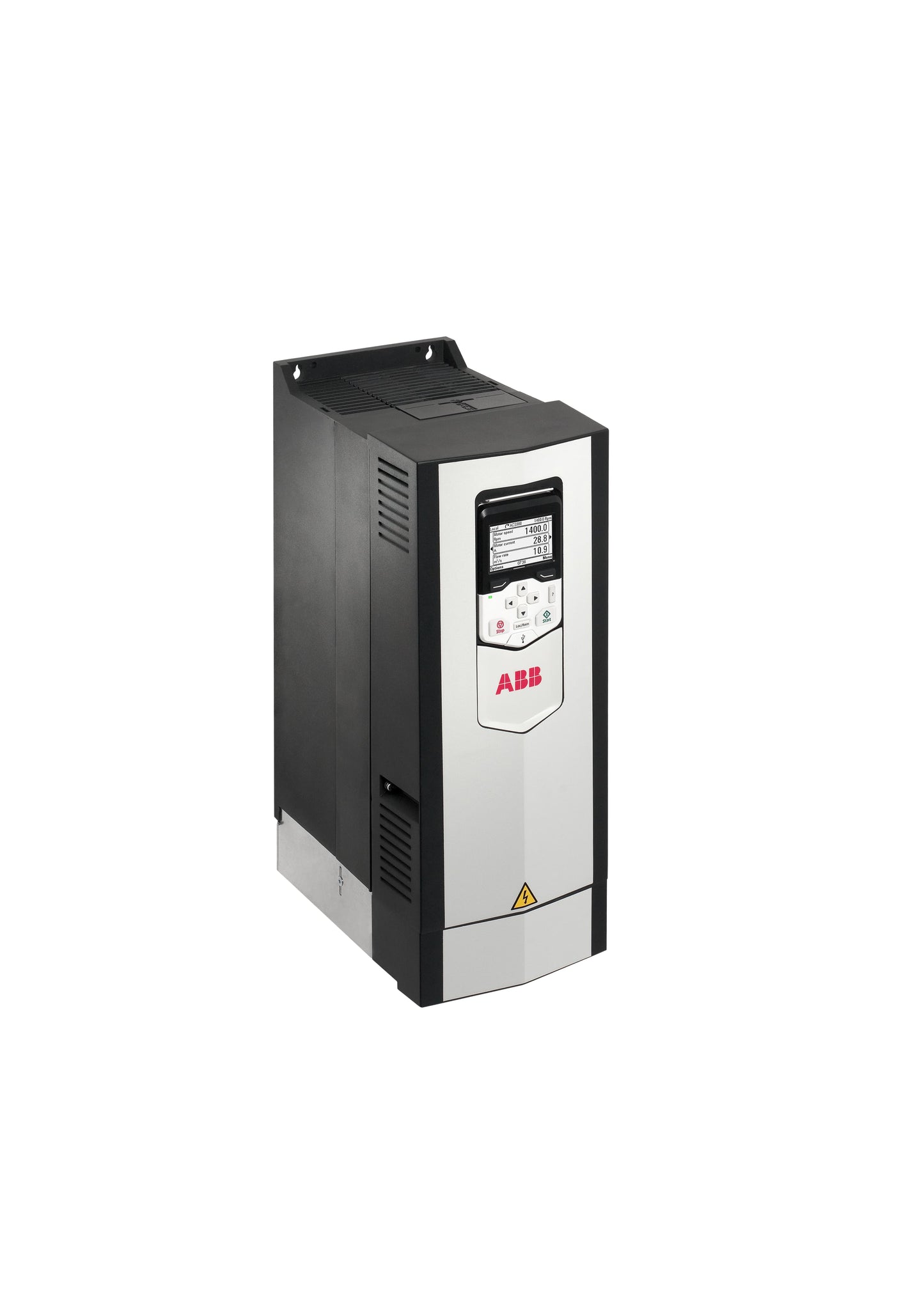

ACS880-01-07A6-5

Product Overview

• Model: ABB ACS880-01-07A6-5

• Type: Wall-mounted low-voltage industrial AC drive (ACS880-01 series)

• Nominal Power (Pn): 4 kW — 7.6 A (AC-3)

• Light-Overload: 4 kW — 7.0 A

• Heavy-Duty: 3 kW — 5.2 A

Performance & Features

• Input Voltage Range: 380–500 V AC, 3-phase

• Control Technology: ABB’s Direct Torque Control (DTC), supporting precision control with or without encoder

• Functional Safety: Includes Safe Torque Off (STO) by default

• Integrated Components:

  • EMC filter

  • Built-in harmonic mitigation

• Connectivity Options:

  • USB interface

  • RS-485 (Modbus RTU)

  • Optional fieldbus support: Modbus/TCP, PROFINET, PROFIBUS, EtherNet/IP

• Cooling: Forced-air cooling with internal fan for efficient heat dissipation

Physical & Environmental Specs

• Enclosure: IP20 rated (standard indoors)

• Dimensions (H × W × D): ~250 × 225 × 150 mm

• Weight: ~7.6 kg

• Operating Ambient Temperature: –10 °C to +50 °C (no derating required)
