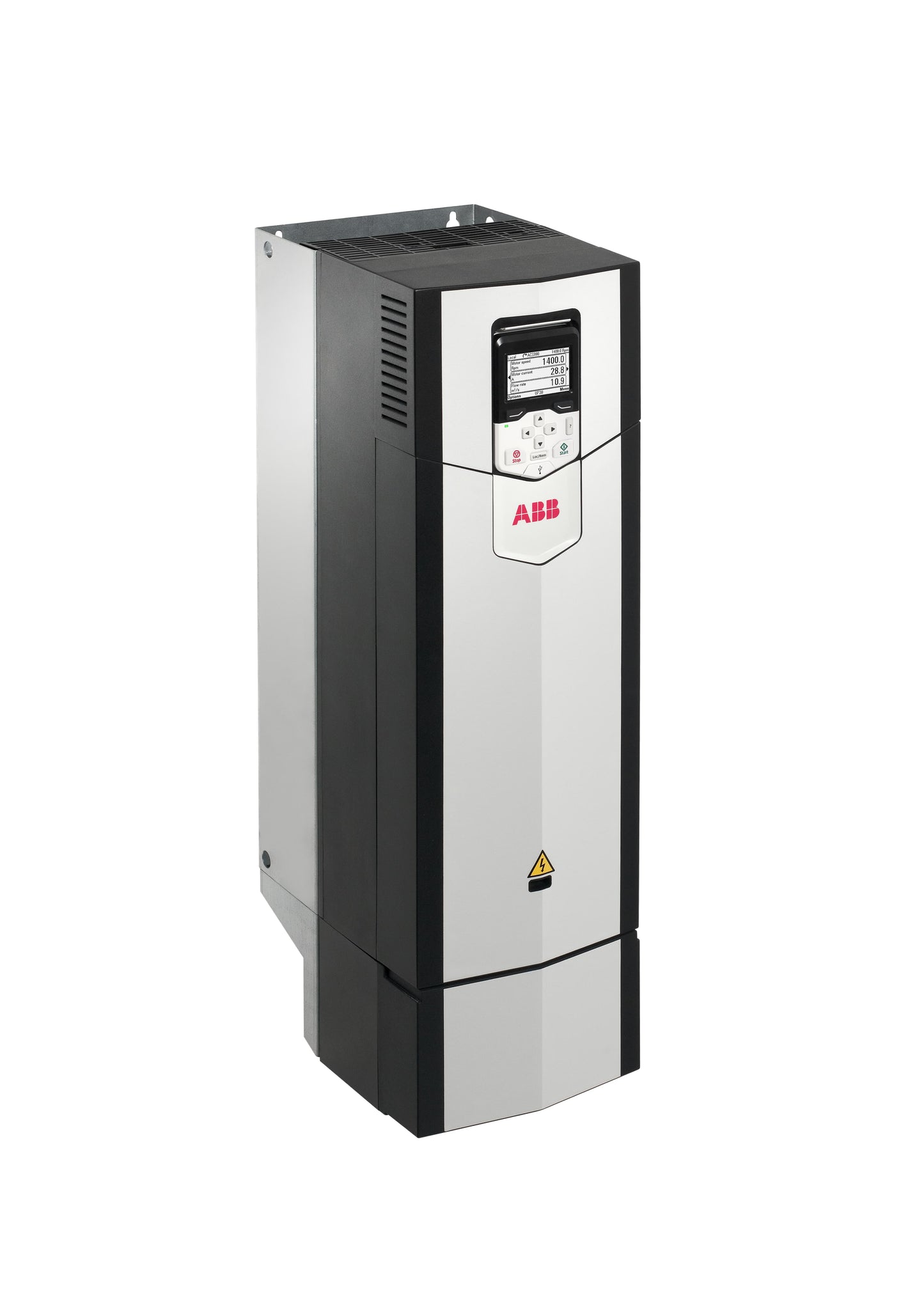

ACS880-01-065A-5

 Product Overview

• Model: ABB ACS880-01-065A-5

• Type: Wall-mounted industrial low-voltage AC drive (ACS880-01 series)

• Nominal Duty: 37 kW — 65 A (IEC)

• Light-Overload: 37 kW — 62 A

• Heavy-Duty: 30 kW — 52 A

  • (Equivalent to 50 HP nominal; 40 HP heavy-duty)

• Input Voltage: 380–500 V AC, 3-phase

• Frame & Enclosure: R5 frame, IP21 standard (NEMA Type 1)

Physical Specifications

• Dimensions (H × W × D): approx. 730 mm × 203 mm × 274 mm

• Net Weight: approx. 22.8 kg (50 lbs)

Electrical Performance & Features

• Control Technology: Direct Torque Control (DTC) for accurate motor management

• Functional Safety: Safe Torque Off (STO) included as standard

• Integrated Components:

  • EMI filter

  • Harmonic mitigation chokes

  • Optional features: brake chopper, dynamic braking, keypad variants

• Connectivity & I/O:

  • USB port and RS-485 (Modbus RTU)

  • Fieldbus compatibility: PROFINET, PROFIBUS, EtherNet/IP, Modbus TCP, DeviceNet

  • Standard I/O package: analog/digital interfaces

• Speed Range: Up to 500 Hz
