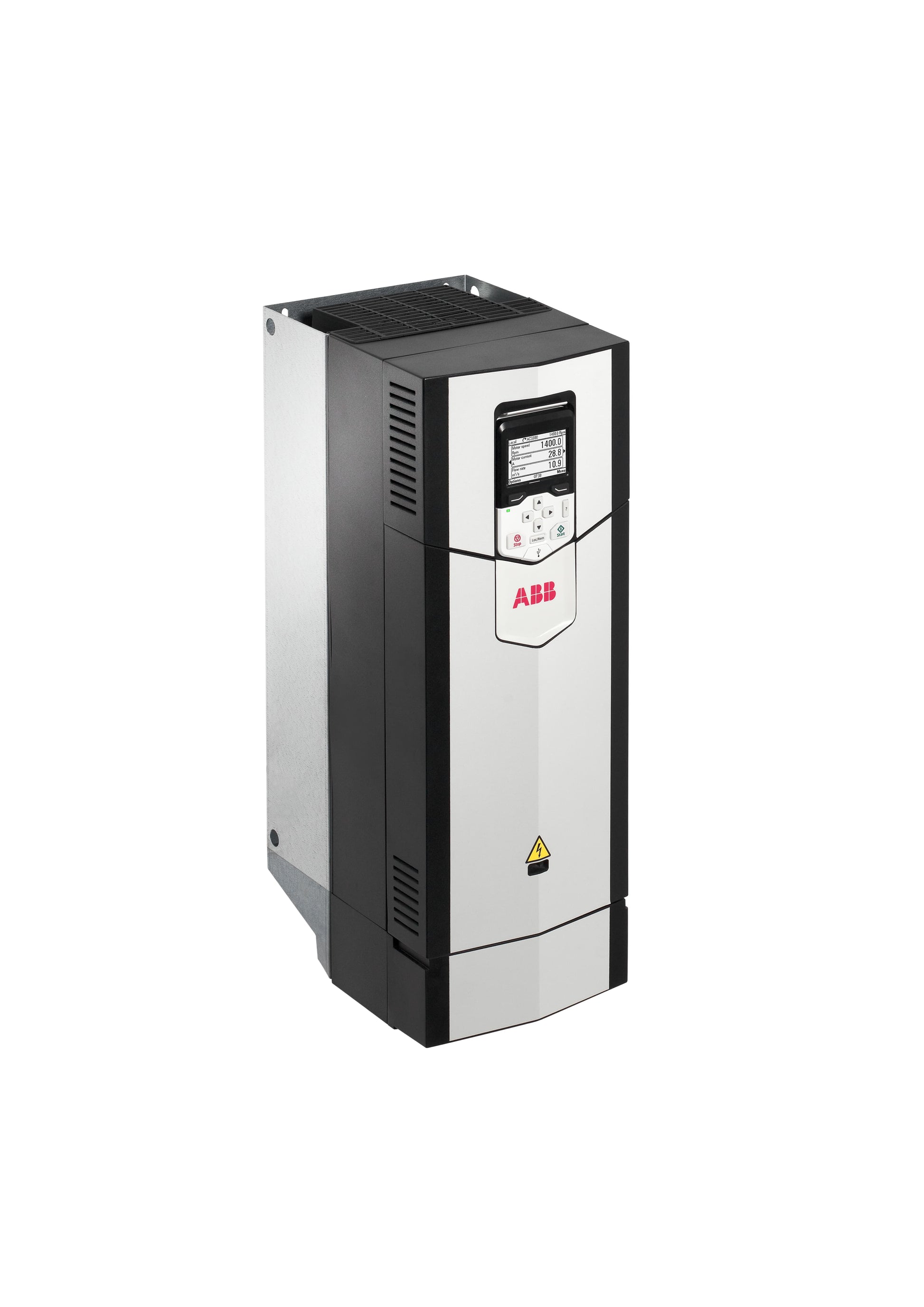

ACS880-01-061A-3

 Product Overview

• Model: ABB ACS880-01-061A-3

• Type: Wall-mounted industrial low-voltage AC drive (ACS880-01 series)

• Nominal Power: 30 kW — 61 A (AC-3)

• Light-Overload Rating: 30 kW — 58 A

• Heavy-Duty Rating: 22 kW — 45 A

Electrical Performance & Features

• Input Voltage: 380–415 V AC, 3-phase

• Speed Range: 0–500 Hz

• Control Technology: Direct Torque Control (DTC) for precise motor regulation

• Functional Safety: Safe Torque Off (STO) standard

• Overload Capacity: 150% for 60 seconds in heavy-duty mode

• Connectivity & I/O:

  • 2 analog inputs, 2 analog outputs

  • 6 digital inputs, 3 relay outputs

  • RS-485 (Modbus RTU)

  • Fieldbus options (PROFIBUS, PROFINET, EtherNet/IP, Modbus TCP)

Physical & Environmental Specifications

• Frame / Enclosure: R4 / IP21 (NEMA Type 1)

• Dimensions (W × H × D): 203 × 576 × 274 mm

• Net Weight: ~18.5 kg

• Operating Temperature Range: −15 °C to +55 °C (storage: −40 °C to +70 °C)
