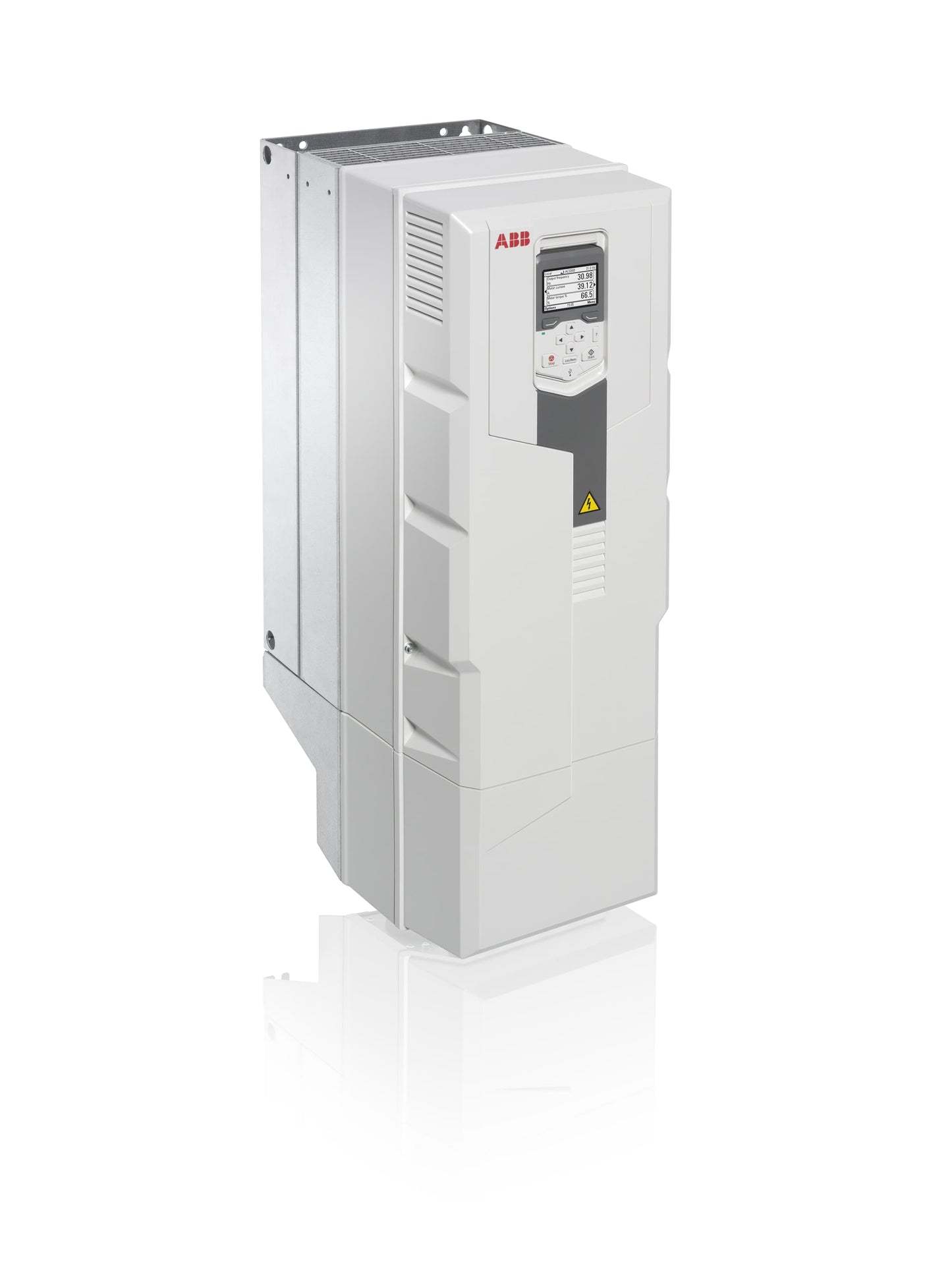

ACS580-01-206A-4

Product Overview

• Model: ABB ACS580-01-206A-4

• Type: Wall-mounted general-purpose VFD (ACS580-01 series)

• Power Ratings:

  • Nominal Output: 110 kW — 206 A (AC-3)

  • Light-Overload Rating: 110 kW — 196 A

  • Heavy-Duty Rating: 90 kW — 169 A

• Input Voltage: 380–480 V AC, 3-phase

• Frame / Enclosure: R7 frame — IP21 standard, IP55 optional available

• Efficiency Class: IE2 — Standby Loss: ~36 W

Physical Specifications

• Dimensions (W × H × D):

  • Width: 284 mm

  • Height: 880 mm

  • Depth: 370 mm

• Net Weight: 54 kg

Performance & Functional Features

• Overload Capability:

  • 150% for 60 seconds every 10 minutes (High Overload)

  • 110% for 60 seconds in fan/pump duty

• Speed Range: 0–500 Hz

• Control Modes: V/f and Sensorless Vector; full closed-loop vector optional with encoder

• Safety & EMC: Safe Torque Off (STO); built-in C2-grade EMC filter

• Setup & Diagnostics: Assistant control panel; FlashDrop (offline); DriveWindow Light (PC)

• Connectivity & I/O: USB, RS-485 (Modbus RTU), plus support for fieldbus protocols and analog/digital I/O

• Thermal & Acoustic Performance:

  • Heat Dissipation at varying loads available (up to ~2785 W at high load)

  • Maximum noise output: ~67 dB(A)

Summary Table
