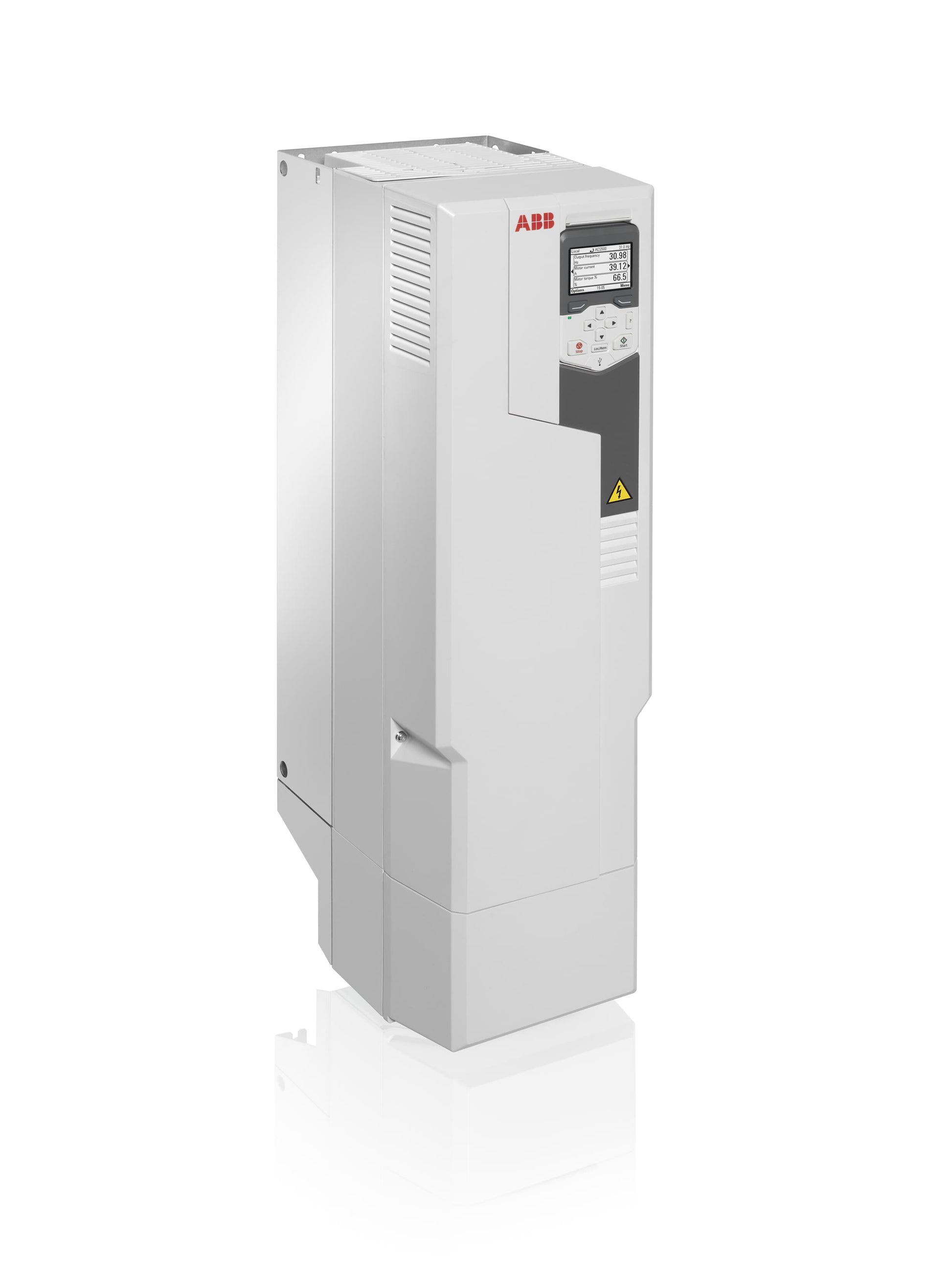

ACS580-01-106A-4

Product Overview

• Model: ABB ACS580-01-106A-4

• Type: Wall-mounted general-purpose VFD (ACS580-01 series)

• Power Ratings:

  • Normal Duty (Pn): 55 kW — 106 A (AC-3)

  • Light Overload (PLd): 55 kW — 100 A

  • Heavy Duty (PHd): 45 kW — 87 A

• Input Voltage: 380–480 V AC, 3-phase

• Frame / Enclosure: R5 / IP21 standard (IP55 optional)

• Efficiency Class: IE2 — Standby Power Loss: ~24 W

Physical Specifications

• Dimensions (W × H × D): 203 × 732 × 295 mm

• Net Weight: ~28.3 kg

Performance & Functional Features

• Overload Capacity:

  • 150% for 60 seconds every 10 minutes (heavy-duty overload)

  • 110% for 60 seconds for fan/pump operation (light overload)

• Control Modes: V/f and Sensorless Vector (full closed-loop available via encoder)

• Safety & EMC: Safe Torque Off (STO) and integrated C2-grade EMC filter standard

• Setup Tools & Connectivity:

  • Assistant control panel

  • USB interface

  • RS-485 with Modbus RTU/IP

  • Fieldbus support: Modbus, PROFIBUS, PROFINET, EtherNet/IP, DeviceNet

  • I/O: 2 analog inputs, 2 analog outputs, 6 digital inputs, 3 relay outputs
