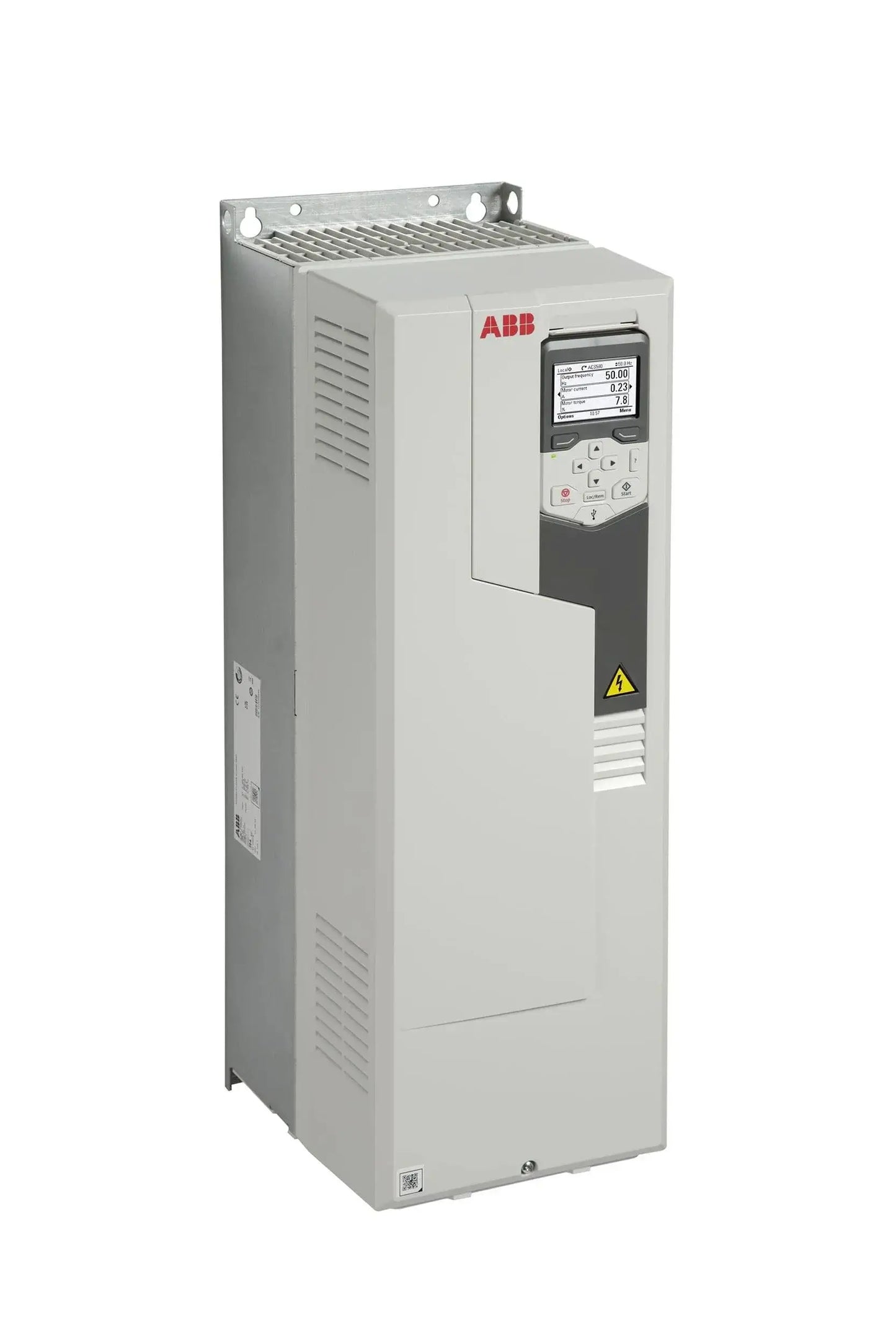

ACS580-01-088A-4

Product Overview

• Model: ABB ACS580-01-088A-4

• Type: Wall-mounted general-purpose VFD (ACS580-01 series)

• Power Ratings:

  • Normal Duty: 45 kW (≈ 60 hp) — 88 A (AC-3)

  • Light Overload: 45 kW — 83 A

  • Heavy Duty: 37 kW — 72 A

• Input Voltage: 380–480 V AC, 3-phase

• Frame / Enclosure: R5 / IP21 (indoor, wall-mount)

• Efficiency Class: IE2 — Standby Loss: ~21 W

Physical Specifications

• Dimensions (W × H × D):

  • Width: 203 mm

  • Height: 732 mm

  • Depth: 295 mm

• Net Weight: 28.3 kg

Additional Technical Features

• Overload Capacity:

  • 150% for 60 seconds every 10 minutes (high overload)

  • 110% for fan/pump applications (60 seconds every 10 minutes)

• Control Modes: V/f and Sensorless Vector, with optional full closed-loop vector via encoder

• Safety & EMC: Safe Torque Off (STO) plus integrated C2 EMC filter

• Setup & Diagnostics: Assistant control panel, FlashDrop (offline parameter upload), DriveWindow Light (PC configuration)

• Connectivity: USB port, RS-485 (Modbus RTU), plus support for fieldbus protocols like Modbus, PROFIBUS, PROFINET, EtherNet/IP, etc.
