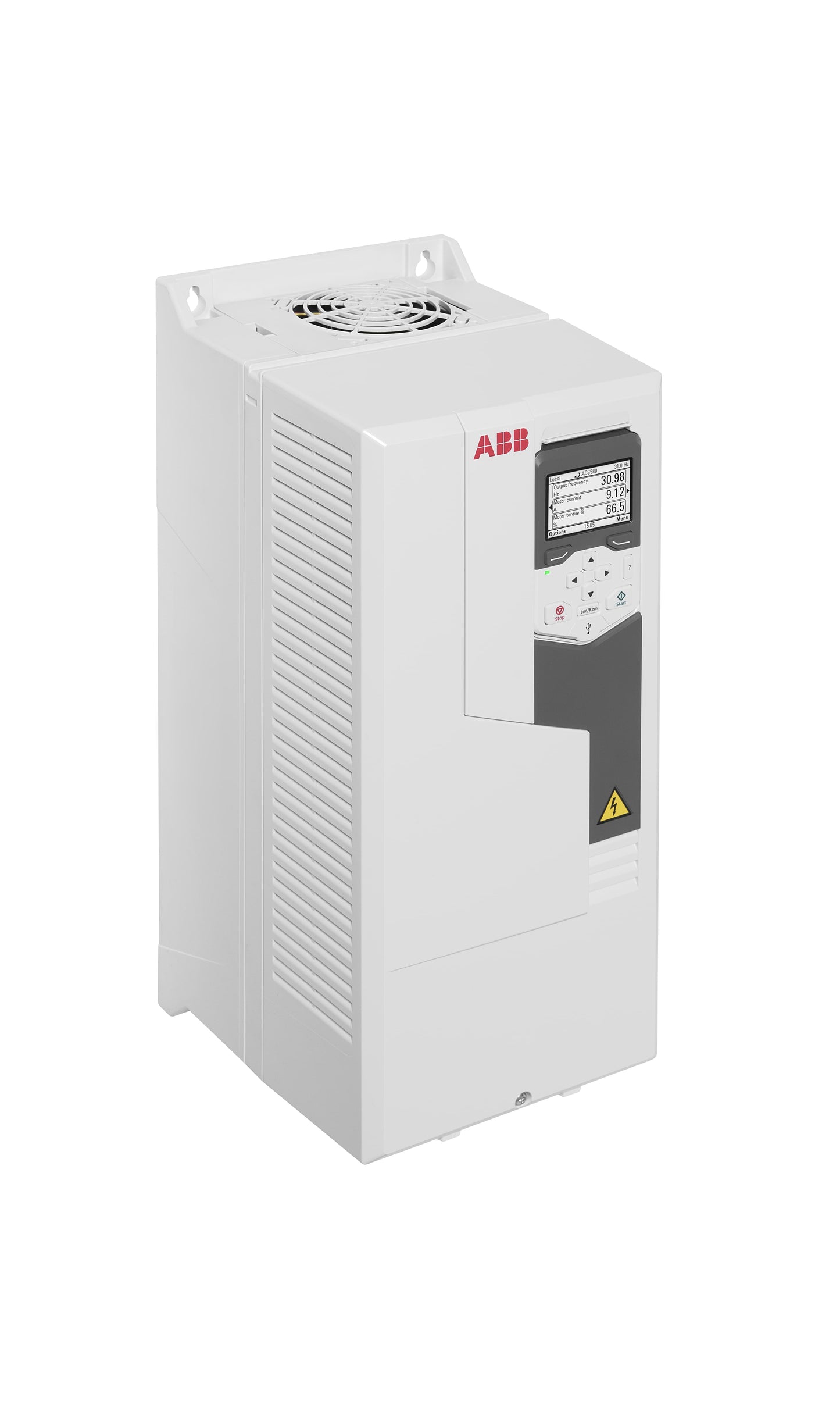

ACS580-01-033A-4
Product Overview
-
Model: ABB ACS580-01-033A-4
-
Type: Wall-mounted general-purpose VFD (ACS580-01 series)
-
Power Ratings:
-
Nominal Output: 15 kW (≈ 20 hp) — 32 A
-
Light-Overload Rating: 15 kW — 30.4 A
-
Heavy-Duty Rating: 11 kW — 24.6 A
-
-
Input Voltage: 380–480 V AC, 3-phase, 50/60 Hz
-
Frame Size: R3 — IP21 enclosure (indoor, wall-mount)
-
Efficiency Class: IE2 — Standby Loss: ~16 W
Physical Dimensions & Net Weight
-
Net Weight: 11.8 kg (some sources list ~14.9 kg including packaging)
-
Dimensions (W × H × D): 203 mm × 490 mm × 229 mm
Summary Table
| Feature | Specification |
|---|---|
| Power (Normal / Light / HD) | 15 kW / 15 kW / 11 kW |
| Current (Normal / Light / HD) | 32 A / 30.4 A / 24.6 A |
| Voltage | 380–480 V AC, 3-phase |
| Frame / Enclosure | R3 / IP21 |
| Dimensions (W×H×D) | 203 × 490 × 229 mm |
| Net Weight | 11.8 kg |
| Efficiency / Loss | IE2 / ~16 W standby loss |
Regular price
$1,067.93
Sale price
$1,067.93
Regular price
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
Couldn't load pickup availability
- Express Delivery
- 12 Months Warranty
- 7 Days Easy Replace
Secure checkout with
Payment methods
-
Vendor:
ABB
