ACS580-01-018A-4

Product Overview

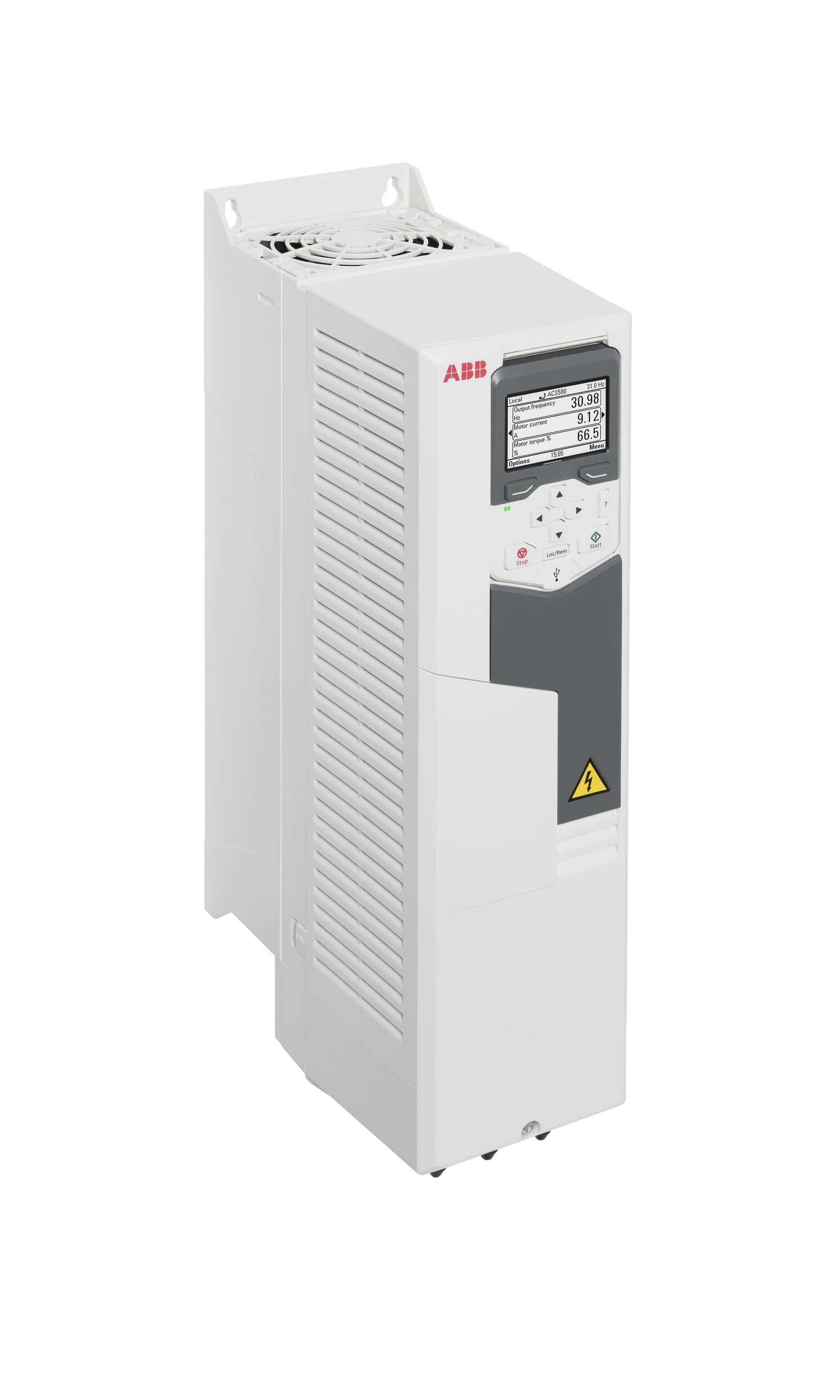

• Model: ABB ACS580-01-018A-4

• Type: Wall-mounted general-purpose VFD (ACS580-01 series)

• Output (Pₙ): 7.5 kW (≈ 10 hp) at 17 A (normal duty)

• Heavy-Duty Output (Pₕd): 5.5 kW at 12.6 A

• Also handles light-overload: 7.5 kW at 16.2 A

• Supply Voltage: 380–480 V AC, 3-phase, 50/60 Hz

• Frame Size: R2

• Enclosure Rating: IP21 (standard version), with IP55 option available

Electrical & Performance Specifications

• Frequency Range: 0–500 Hz

• Overload Capabilities:

  • 150% for 60 seconds (high overload)

  • 110% for 60 seconds (fan/pump rating)

Safety, Control & Connectivity Features

• Safety & Protection:

  • Safe Torque Off (STO, SIL 3)

  • Built-in EMC filter (C2 standard)

  • Integrated brake chopper (up to R3 frame); external option for larger frames

• User Tools & Logic:

  • FlashDrop for offline setup

  • DriveWindow Light for PC-based configuration and diagnostics

  • Assistant control panel with real-time clock, program macros, help menu

• Connectivity Options:

  • 2 analog inputs, 2 analog outputs

  • 6 digital inputs, 3 relay outputs

  • RS-485/Modbus RTU

  • Ports for various fieldbus options (e.g., DeviceNet, PROFIBUS, PROFINET IO)

Mechanical & Environmental Specifications

• Dimensions (W × D × H):

  • ~125 mm × 229 mm × 430 mm

• Weight: ~7.5 kg

• Operating Ambient Temperature: –10 °C to +40 °C (with derating above 40 °C)

• Mounting Clearance: 75 mm top and bottom; side-by-side mounting permissible with 0 mm spacing

• Typical Heat Dissipation: ~228 W at full load

Summary Table
