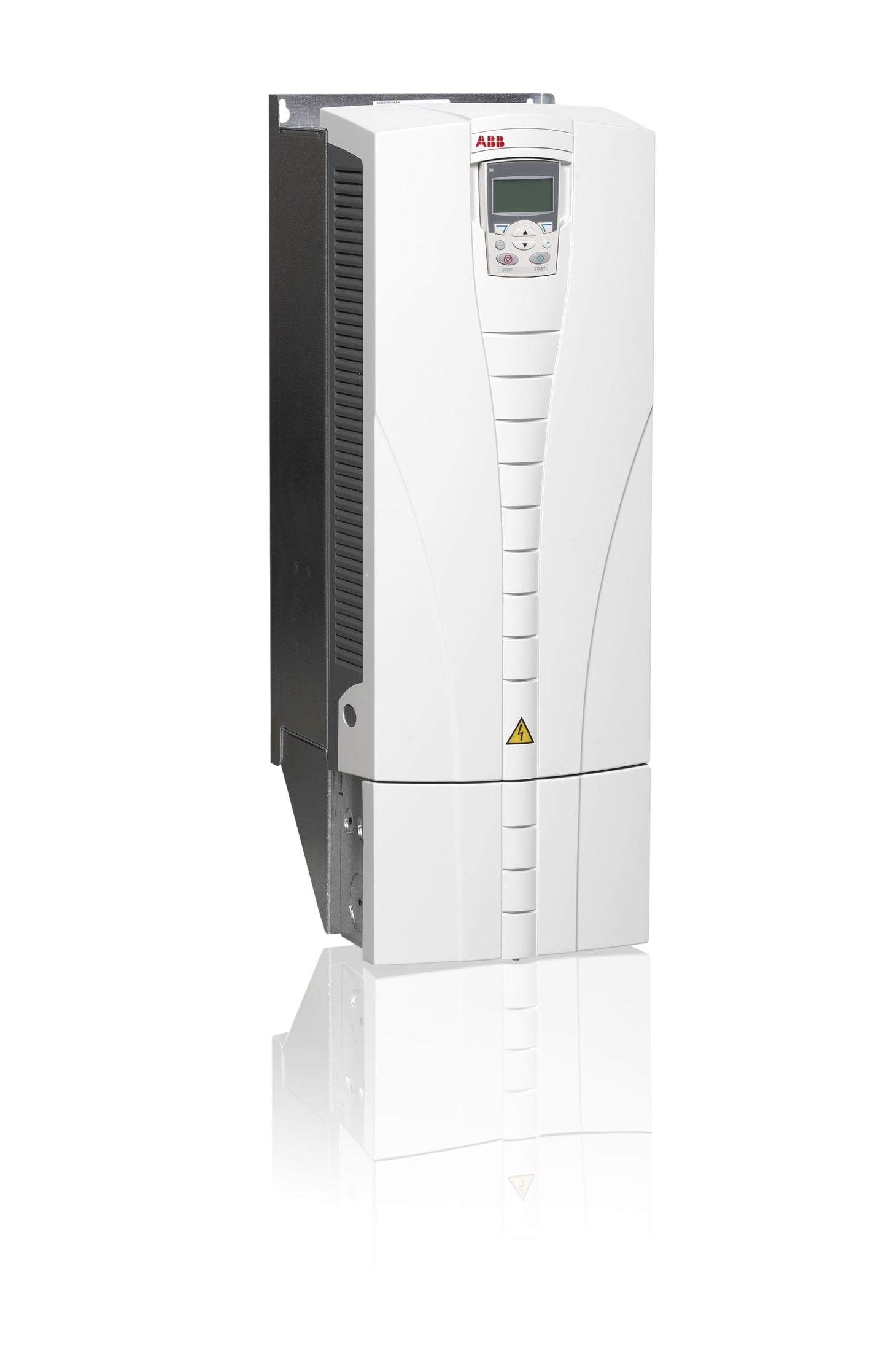

ACS550-01-087A-4
Product Overview
-
Model: ABB ACS550-01-087A-4
-
Configuration: Wall-mounted (ACS550-01 series)
-
Normal Duty Output: 45 kW (~60 hp) at 87 A (AC-3)
-
Heavy-Duty Output: 37 kW (~50 hp) at 72 A
-
Supply Voltage: 380–480 V AC (3-phase), 50/60 Hz
-
Enclosure Rating: IP21 (indoor)
-
Frame Size: R4
Electrical & Performance Specifications
| Mode | Output Power | Continuous Current |
|---|---|---|
| Normal | 45 kW (60 hp) | 87 A |
| Heavy-Duty | 37 kW (50 hp) | 72 A |
| Voltage | 380–480 V AC, 3-phase, 50/60 Hz |
Features
-
Safety & Control:
-
Safe Torque Off (STO)
-
Built-in EMC Filter (C2/C3)
-
Integrated Brake Chopper
-
-
Setup Tools:
-
FlashDrop (offline parameter setup)
-
DriveWindow Light (PC-based configuration and diagnostics)
-
-
Advanced Logic:
-
Sequence programming
-
Application macros
-
Assistant control panel for simplified configuration
-
Mechanical & Environmental Specifications
-
Dimensions (W × D × H): ~203 × 262 × 689 mm
-
Weight: ~22.8 kg
-
Operating Temperature: –10 °C to +40 °C (derating may apply above +40 °C)
-
Mounting Clearance: 75 mm above and below; side-by-side mounting allowed with 0 mm spacing
-
Typical Heat Dissipation: ~300 W
Summary Table
| Feature | Specification |
|---|---|
| Normal Output / Current | 45 kW (60 hp) / 87 A |
| Heavy-Duty Output / Current | 37 kW (50 hp) / 72 A |
| Supply Voltage | 380–480 V AC, 3-phase |
| Frame Size | R4 |
| Enclosure Rating | IP21 |
| Safety & EMC | STO, EMC filter, brake chopper |
| Configuration Tools | FlashDrop, DriveWindow Light |
| Embedded Logic Features | Macros, sequence programming |
| Dimensions (W × D × H) | ~203 × 262 × 689 mm |
| Weight | ~22.8 kg |
| Ambient Temperature Range | –10 °C to +40 °C |
| Mounting Clearance | 75 mm top/bottom; 0 mm sides |
| Thermal Loss | ~300 W |
