ABB ACS355-03E-15A6-4

ABB ACS355-03E-15A6-4

Product Overview

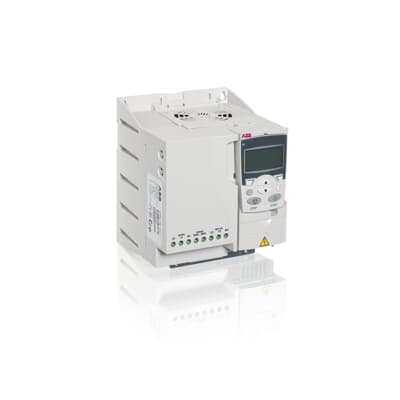

The ABB ACS355-03E-15A6-4 is a 3-phase machinery drive (VFD) from ABB’s compact ACS355 series. It delivers 7.5 kW (≈ 10 hp) of motor control power with a continuous output current of 15.6 A (AC-3). This R3-frame IP20 drive is engineered for seamless integration into machinery panels and offers enhanced control, safety, and usability features.

Electrical & Performance Specifications

• Nominal Output Power: 7.5 kW (10 hp)
• Continuous Output Current (AC-3): 15.6 A
• Supply Voltage: 380–480 V AC, 3-phase, 50/60 Hz
• Frame Size: R3
• Enclosure Rating: IP20 (wall-mounted)

Safety & Built-In Features

• Safe Torque Off (STO)—built-in safety compliant to SIL 3 standard
• C3-level EMC Filter—industrial electromagnetic compatibility
• Integrated Brake Chopper for dynamic braking support
• Configuration Tools:
• FlashDrop—offline parameter setup without line power
• DriveWindow Light—PC-based configuration and diagnostics
• Smart Logic Integration: Sequence programming, application macros, configurable assistants

Mechanical & Environmental Specifications

• Dimensions (W × H × D): 169 mm × 236 mm × 195 mm
• Weight: Approximately 3.3 kg
• Operating Ambient Temperature: –10 °C to +50 °C (may require derating at higher temps)
• Mounting Clearance Requirements: 75 mm at top and bottom; 0 mm side-by-side mounting permitted
• Thermal Power Loss: Approximately 161 W at full load

Summary Table

Feature Specification Output Power 7.5 kW (10 hp) Continuous Current 15.6 A (AC-3) Supply Voltage 380–480 V AC, 3-phase, 50/60 Hz Frame Size R3 Enclosure Rating IP20 Safety & EMC STO (SIL 3), C3 filter, brake chopper Configuration Tools FlashDrop, DriveWindow Light, macros Dimensions (W×H×D) 169 × 236 × 195 mm Weight ~3.3 kg Ambient Temperature –10 °C to +50 °C Mounting Clearance 75 mm top/bottom; 0 mm side-by-side Thermal Loss ~161 W
