Product Overview

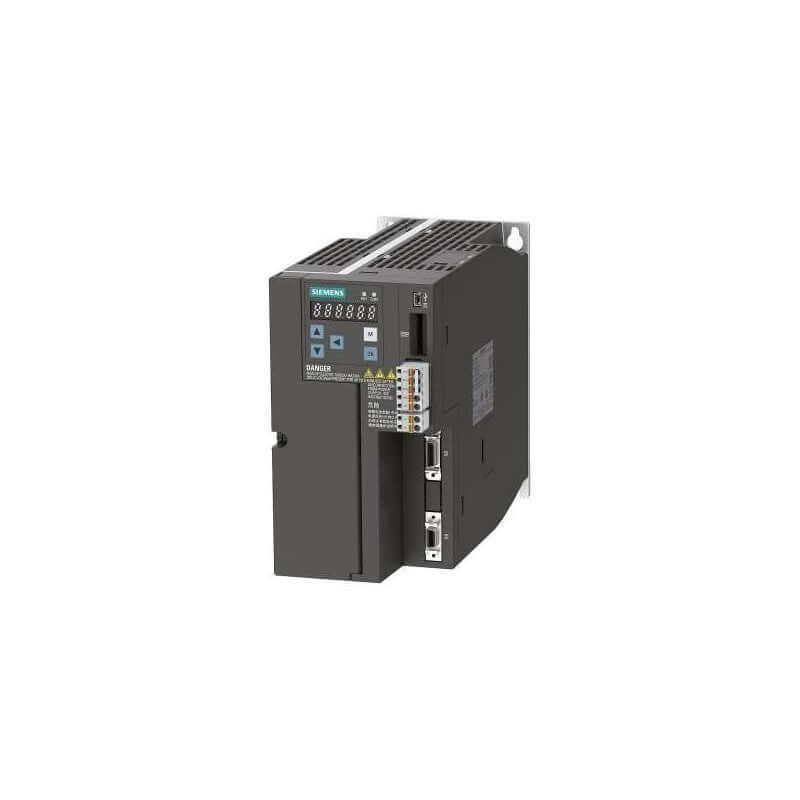

Model: 6SL3210-5FE11-5UF0
Classification: SINAMICS V90 Servo Drive (with PROFINET)
Purpose: Compact servo drive delivering moderate power in a small footprint. Controls synchronous / induction motors in motion applications with built-in fieldbus communications (PROFINET) and full servo features.

Electrical & Operational Specifications

• Input Voltage: 3-phase, 380–480 V AC

• Voltage Tolerance: –15% / +10%

• Input Current: 6.6 A

• Frequency Range (Supply): 45 – 66 Hz

• Output Voltage: Up to input voltage (3-phase)

• Output Current: 5.3 A

• Output Frequency Range: 0 – 330 Hz

• Motor Power Rating: ~1.5 kW (1.75 HP)

• Protection / Enclosure: IP20 (open or cabinet installed)

• Size / Form Factor: Size B, with approximate dimensions 100 × 180 × 220 mm (W × H × D)

• Net Weight: ~3.06 kg

Physical & Installation Specifications

• Mounting / Orientation: Vertical mounting within cabinet or enclosure

• Cooling: Forced-air via built-in fan

• Env. Conditions: Indoor use, controlled environment

Interface & Connectivity

• Fieldbus / Communication: PROFINET interface

• Signal & I/O: Standard servo signal interface, encoder feedback support

• Drive Integration: Mounts as standalone servo drive, communicates over PROFINET to controller
