Product Overview

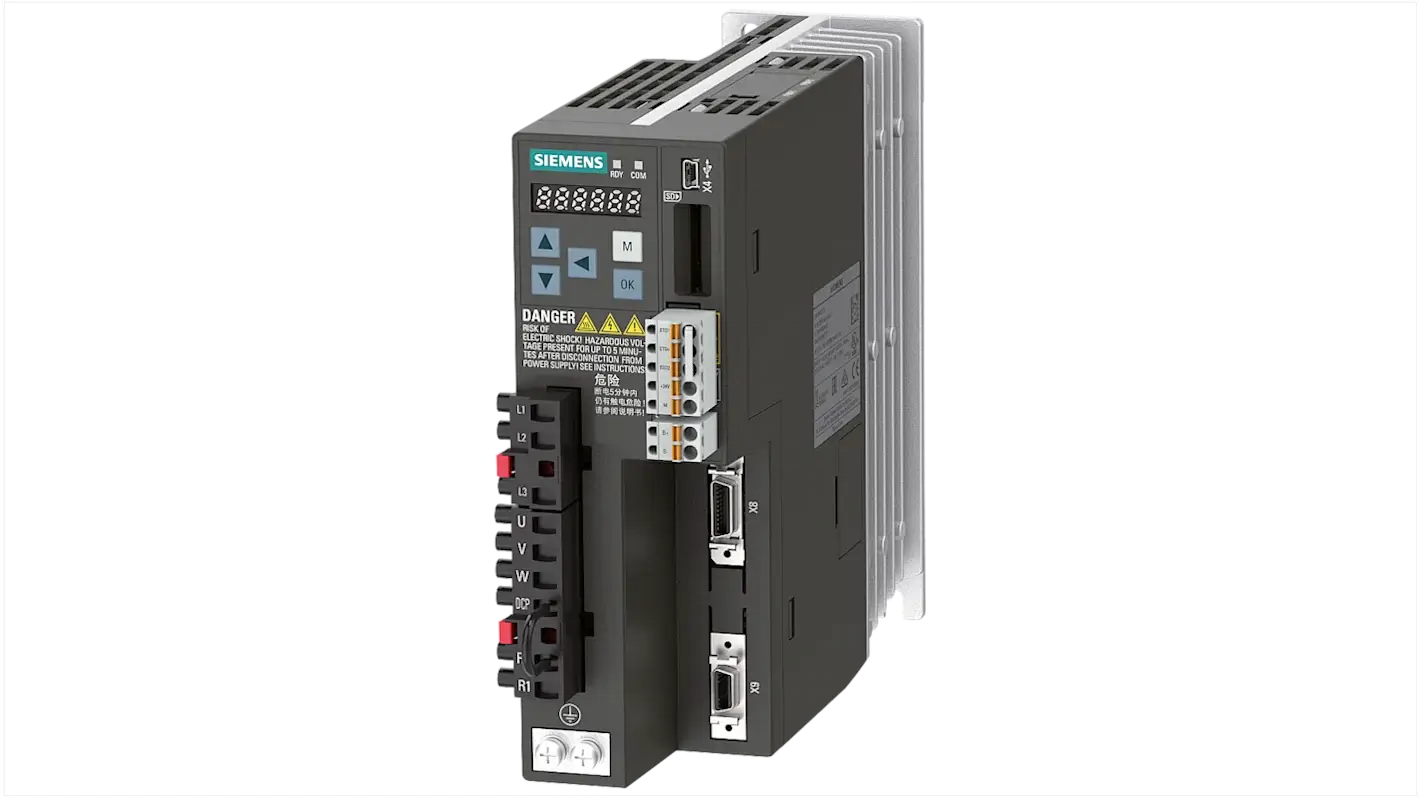

Model: 6SL3210-5FE11-0UF0
Classification: SINAMICS V90 Servo Drive (PROFINET)
Purpose: Compact servo drive optimized for moderate power motion control applications. Controls synchronous / induction motors with full servo functionality and integrated communications.

Electrical & Operational Specifications

• Input Voltage: 3-phase, 380–480 V AC, –15% / +10%

• Supply Current (Input): 3.8 A

• Output Current: 3.0 A

• Motor Power Rating: 0.75 / 1.0 kW (depending on configuration)

• Frequency Range (Output): 0 to 330 Hz

• Protection / Enclosure: IP20 (open / cabinet installed)

• Form Factor / Size: Size A (approx. dimensions 80 × 180 × 200 mm, WxHxD)

• Weight: ~2.09 kg

Interface & Connectivity

• Fieldbus / Communication: PROFINET

• Servo / Feedback Interface: Standard encoder / feedback inputs

• Drive Integration: Mounts and interfaces as a standalone V90 module in drive systems

Summary Table
