Product Overview

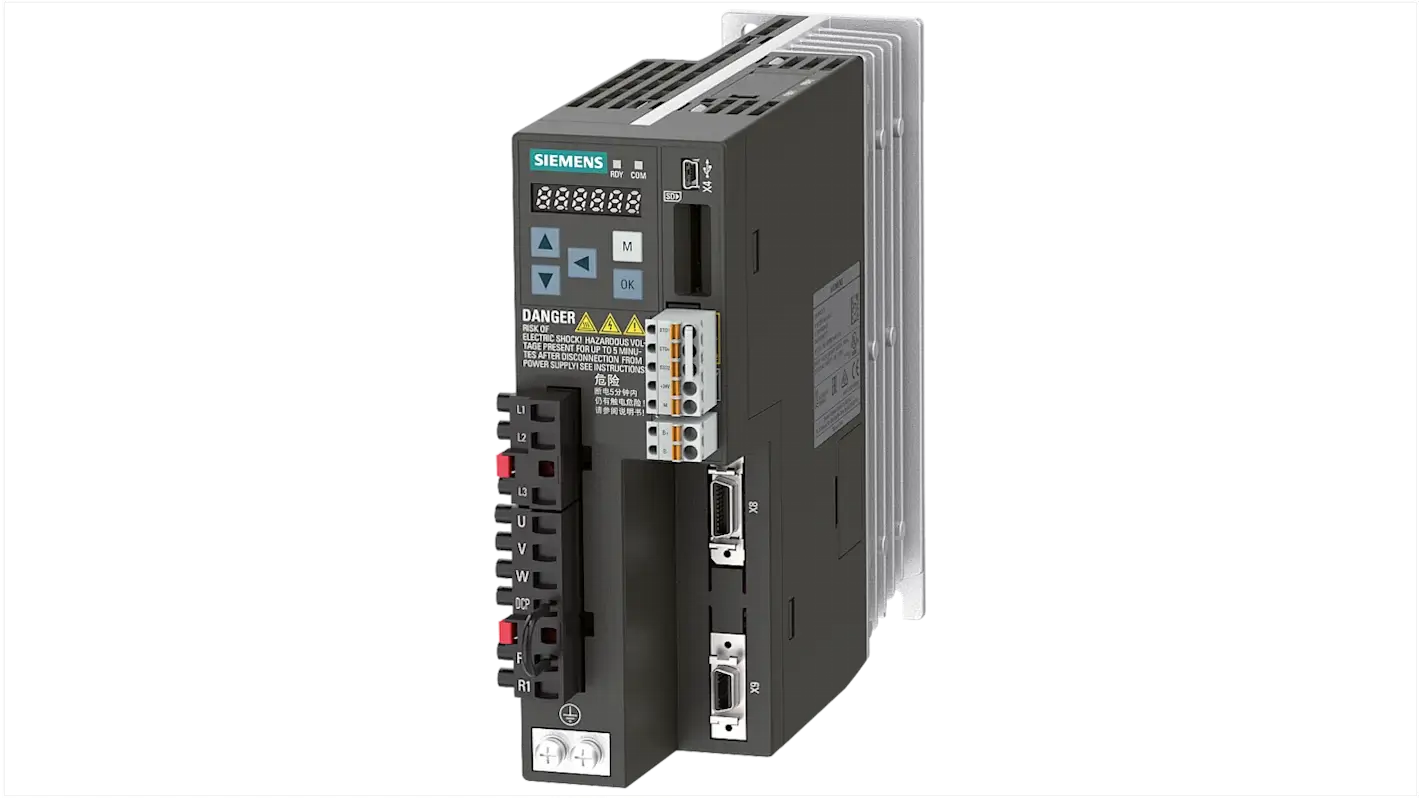

Model: 6SL3210-5FE10-4UF0
 Classification: SINAMICS V90 Servo Drive (PROFINET interface)
Purpose: Compact servo drive for small to mid-range motion control. Provides precise motor control with integrated PROFINET communication for automation networks.

Electrical & Operational Specifications

• Input Voltage: 3-phase, 380–480 V AC (–15% / +10%)

• Supply Current: 3.6 A

• Output Current: 1.2 A

• Rated Motor Power: 0.4 kW

• Output Frequency Range: 0 – 330 Hz

• Frame / Size: Size AA

• Degree of Protection: IP20

• Ambient Operating Temperature: –40 to +70 °C

Physical & Mechanical Specifications

• Dimensions (W × H × D): ~60 × 180 × 200 mm

• Net Weight: ~1.45 kg

• Cooling: Internal forced-air

• Mounting Orientation: Vertical, within control cabinet

Interface & Connectivity

• Fieldbus / Communication: PROFINET

• Feedback / Motor Interface: Encoder feedback and motor power connections

• Drive Integration: Part of SINAMICS V90 system architecture
