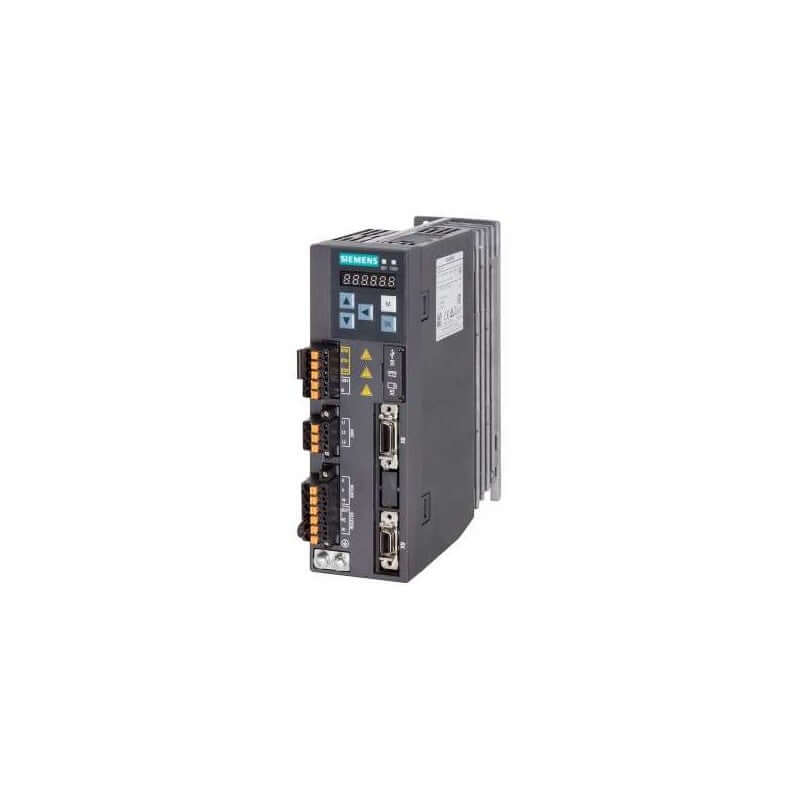

6SL3210-5FB10-4UF1

Product Overview

Model: 6SL3210-5FB10-4UF1
 Classification: SINAMICS V90 Servo Drive (PROFINET version)
Purpose: Compact servo drive for motion control applications. Provides built-in PROFINET communication and precise motor control in small-footprint installations.

Electrical & Operational Specifications

• Input Voltage: 200-240 V AC, 1 / 3-phase (–15% / +10%)

• Supply Current: 5.0 A (3-phase) / 3.0 A (single-phase)

• Input Frequency Range: 45 – 66 Hz

• Output Current (Motor): 2.6 A

• Output Frequency Range: 0 – 330 Hz

• Motor Power: 0.4 kW

• Protection / Enclosure: IP20

• Frame / Form Factor: Size B

• Dimensions (W × H × D): 55 × 170 × 170 mm

Interface & Connectivity

• Fieldbus / Communication: PROFINET

• Drive / Feedback Interface: Standard servo encoder feedback and motor connections

• Drive Integration: Fits into the V90 servo drive family architecture
