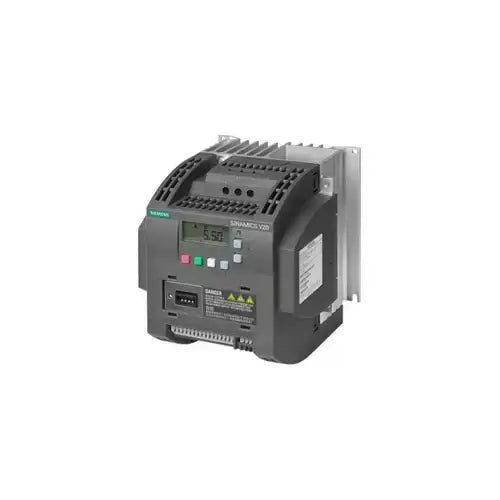

6SL3210-5BE24-0UV0

Product Overview

Model: 6SL3210-5BE24-0UV0
 Classification: SINAMICS V20 Inverter (Unfiltered I/O version)
Purpose: General-purpose AC drive for motor control in small-to-medium applications like pumps, fans, conveyor systems.

Electrical & Operational Specifications (Estimated)

• Input Voltage: 3-phase, 380–480 V AC (–15% / +10%)

• Supply Frequency: 47–63 Hz

• Rated Output Power: 4.0 kW

• Overload Capacity: 150% for 60 seconds

• I/O (Unfiltered): 4 Digital Inputs, 2 Digital Outputs, 2 Analog Inputs, 1 Analog Output

• Control Protocols Supported: USS / Modbus RTU

• Ambient Operating Temperature: Typical from –40 °C to +70 °C (depending on variant)

• Protection / Enclosure Rating: IP20

• Altitude Rating: Up to 1000 m without derating

• Max Motor Cable Length: Shielded ~25 m, Unshielded ~50 m

Physical & Installation Specifications (Approximate)

• Frame / Format: Standard V20 form factor

• Dimensions (W × H × D): ~240 × 206.5 × 172.5 mm

• Net Weight: ~3.7 kg

• Mounting Style: Vertical panel / wall mounting with sufficient airflow

• Cooling: Internal forced-air (within cabinet)

Interface & Connectivity

• Power Terminals: 3-phase AC input, motor outputs, DC link

• Control / I/O Terminals: DI, DO, AI, AO blocks

• Communication Port: RS-485 for USS / Modbus RTU

• Operator Interface: Supports optional operator panels (BOP, AOP)
