6SL3210-5BE21-5CV0
Product Overview

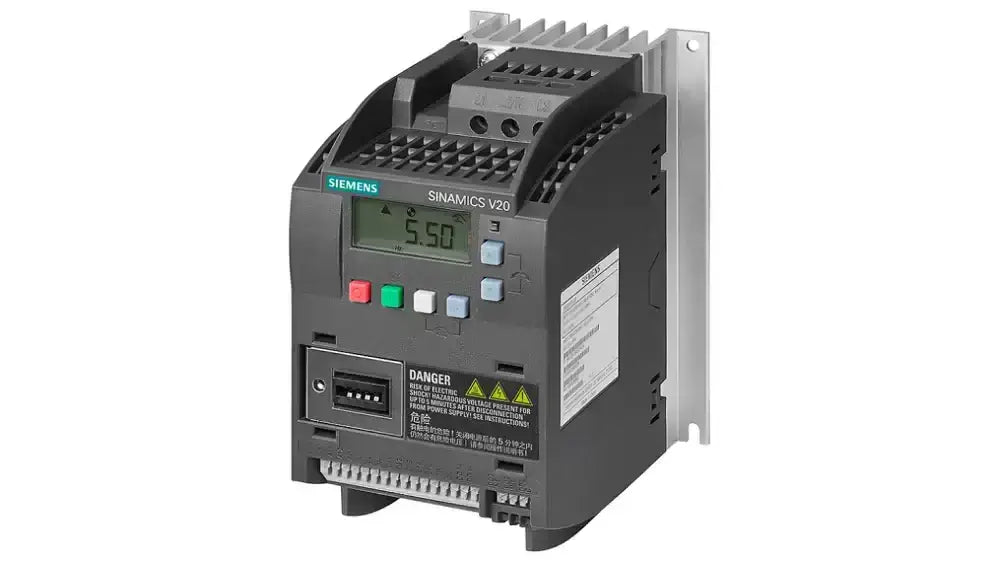

The Siemens SINAMICS V20 (6SL3210-5BE21-5CV0) is a compact, easy-to-use, and reliable 3-phase variable frequency drive (VFD) designed for general-purpose motor control. It operates on a 380–480 V AC 3-phase power supply and delivers approximately 1.5 kW (2 HP) of output power.
This model includes an integrated EMC Filter (Class C3), supports USS and Modbus RTU communication protocols, and features key functions such as ECO Mode, improved cooling, and parameter loading without power supply. The V20 is designed for rugged industrial environments where space, simplicity, and energy efficiency are key priorities.
Electrical & Operational Specifications
| Specification | Details |
|---|---|
| Input Voltage | 3-Phase 380–480 V AC (–15% / +10%) |
| Rated Power Output | 1.5 kW (2 HP) |
| Output Current | 4.1 A nominal |
| Frequency Range | 0–550 Hz |
| Switching Frequency | 4 kHz nominal |
| Overload Capacity | 150% for 60 seconds (in 300 s duty cycle) |
| Control Modes | V/f Control, Sensorless Vector, ECO Mode |
| Integrated EMC Filter | Class C3 |
| Fieldbus Communication | USS and Modbus RTU |
| Parameter Loading | Supported without power supply |
| Braking Function | Internal braking chopper |
Mechanical & Environmental
| Specification | Details |
|---|---|
| Enclosure Rating | IP20 (Open Type / UL Open) |
| Mounting Type | Wall or Panel Mount |
| Cooling Method | Air cooled |
| Frame Size | FSB |
| Dimensions (H × W × D) | 166 mm × 90 mm × 145 mm |
| Approx. Weight | ≈ 1.2 kg (2.6 lb) |
| Operating Temperature | -10 °C to +60 °C (derating above 50 °C) |
| Installation Altitude | Up to 1000 m (derating above 1000 m) |
| Humidity | 5–95% non-condensing |
Control & Communication
| Specification | Details |
|---|---|
| Digital Inputs | 4 Configurable |
| Digital Outputs | 2 Relay / Transistor |
| Analog Inputs | 2 (voltage or current selectable) |
| Analog Outputs | 1 (voltage) |
| Fieldbus Protocols | USS / Modbus RTU |
| Display / Interface | Built-in keypad or optional BOP-2 operator panel |
Compliance & Ratings
-
IEC/EN 61800-3 (EMC)
-
IEC/EN 61800-5-1 (Safety)
-
UL / CSA / CE Certified
-
RoHS / REACH Compliant
Applications
-
Pumps, fans, and compressors
-
Conveyor systems and small machinery
-
OEM applications requiring network communication
-
Compact industrial panels with integrated EMC filtering
