6SL3210-5BE17-5CV0
Product Overview

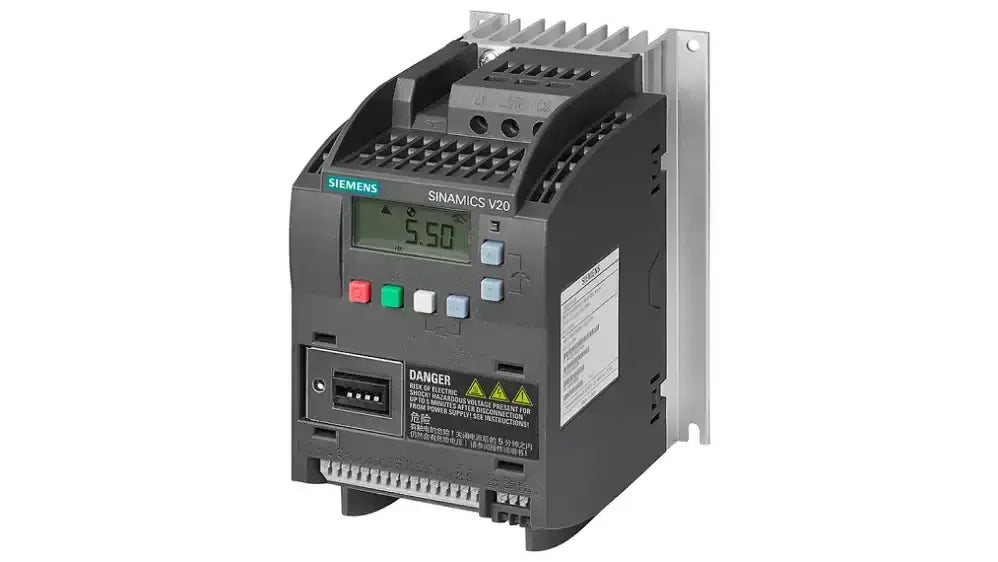

The Siemens SINAMICS V20 (6SL3210-5BE17-5CV0) is a cost-effective, reliable, and user-friendly 3-phase variable frequency drive (VFD) designed for simple industrial applications. Supporting a 380–480 V AC 3-phase input (–15% / +10%), this unit delivers approximately 0.75 kW (1 HP) of output power.
It includes an integrated EMC Filter (Class C3), supports USS and Modbus RTU communication, and provides features such as ECO Mode, improved cooling, and parameter loading without power supply. The V20 series is optimized for compact installations, energy efficiency, and ease of use across a wide range of OEM and automation applications.
Electrical & Operational Specifications
| Specification | Details |
|---|---|
| Input Voltage | 3-Phase 380–480 V AC (–15% / +10%) |
| Rated Power Output | 0.75 kW (1 HP) |
| Output Current | 2.1 A nominal |
| Frequency Range | 0–550 Hz |
| Switching Frequency | 4 kHz nominal |
| Overload Capacity | 150% for 60 seconds (in 300 s duty cycle) |
| Control Modes | V/f Control, Sensorless Vector, ECO Mode |
| Integrated EMC Filter | Class C3 |
| Fieldbus Communication | USS and Modbus RTU |
| Parameter Loading | Supported without power supply |
| Braking Function | Internal braking chopper |
Mechanical & Environmental
| Specification | Details |
|---|---|
| Enclosure Rating | IP20 (Open Type / UL Open) |
| Mounting Type | Wall or Panel Mount |
| Cooling Method | Air cooled, improved thermal design |
| Frame Size | FSA |
| Dimensions (H × W × D) | 150 mm × 90 mm × 145 mm |
| Approx. Weight | ≈ 1.0 kg (2.2 lb) |
| Operating Temperature | -10 °C to +60 °C (derating above 50 °C) |
| Installation Altitude | Up to 1000 m (derating above 1000 m) |
| Humidity | 5–95% non-condensing |
Control & Communication
| Specification | Details |
|---|---|
| Digital Inputs | 4 Configurable |
| Digital Outputs | 2 Relay / Transistor |
| Analog Inputs | 2 (voltage or current selectable) |
| Analog Outputs | 1 (voltage) |
| Fieldbus Protocols | USS / Modbus RTU |
| Display / Interface | Built-in keypad or optional BOP-2 panel |
Compliance & Ratings
-
IEC/EN 61800-3 (EMC)
-
IEC/EN 61800-5-1 (Safety)
-
UL / CSA / CE Certified
-
RoHS / REACH Compliant
Applications
-
Centrifugal pumps and fans
-
Conveyors and small process machinery
-
Compressors and agitators
-
OEM panels and compact automation systems
-
Basic motor control requiring efficiency and reliability
