6SL3210-5BB17-5BV1
Product Overview

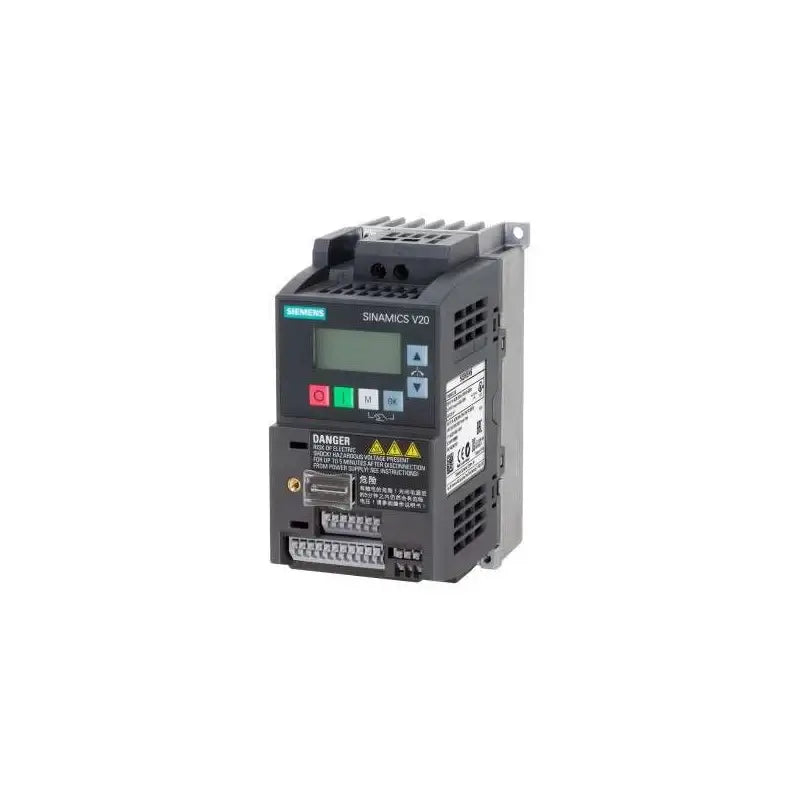

The Siemens SINAMICS V20 model 6SL3210-5BB17-5BV1 is a 3-phase output variable frequency drive (VFD) designed for input of 200-240 V AC (single phase) and delivering approximately 0.75 kW (~1 HP) output.
This variant includes an integrated EMC filter (Class C1), built-in I/O (digital & analog), and supports communication via USS / Modbus RTU. It is compact, panel-mountable, and ideal for small motor-control applications in automation systems.
Electrical & Operational Specifications
| Specification | Details |
|---|---|
| Input Voltage | 1-Phase 200-240 V AC (−10 % / +10 %) |
| Rated Output Power | ~0.75 kW (~1 HP) |
| Overload Capability | 150 % for 60 s (in a 300 s cycle) |
| Output Frequency Range | 0 to ~550 Hz |
| EMC Filter | Integrated (Class C1) |
| I/O Interface | 4 Digital Inputs, 2 Digital Outputs, 2 Analog Inputs, 1 Analog Output |
| Communication Interface | USS / Modbus RTU |
| Protection / Enclosure | IP20 / UL open type |
| Dimensions (approx.) | 68 mm (W) × 142 mm (H) × 128 mm (D) |
| Net Weight (approx.) | ~0.9 kg |
Applications
-
Small-motor control (fan, pump, conveyor) in the ~1 HP class.
-
OEM panels or compact automation systems requiring a cost-effective VFD with integrated filter and communications.
-
Environments where space is limited but advanced I/O and network capability are required.
