6SL3210-1PE31-5UL0
Product Overview

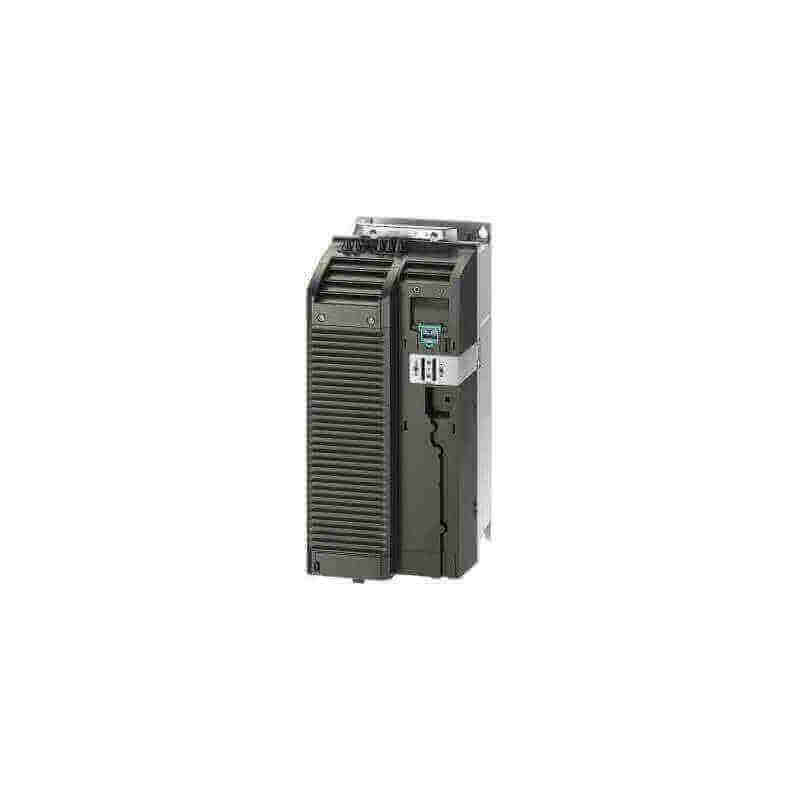

The Siemens SINAMICS PM240-2 (6SL3210-1PE31-5UL0) is a high-performance three-phase power module built for the SINAMICS G120 modular drive system.
Operating on a 380–480 V AC 3-phase input, this model includes a built-in braking chopper but is the unfiltered version (UL0), meaning it does not have an integrated EMC filter.
It provides 75 kW (100 HP) in Low Overload (LO) mode and 55 kW (75 HP) in High Overload (HO) mode, making it ideal for large-scale industrial automation and heavy-duty motor control.
This module is enclosed in a rugged IP20 open-type housing, optimized for panel-mounted or cabinet installations in OEM and process control applications.
Electrical & Operational Specifications
| Specification | Details |
|---|---|
| Input Voltage | 3-Phase 380–480 V AC (±10%) |
| Rated Power (LO) | 75 kW (100 HP) |
| Rated Power (HO) | 55 kW (75 HP) |
| Rated Input Current (LO) | 140 A |
| Rated Input Current (HO) | 117 A |
| Rated Output Current (LO) | 125 A |
| Rated Output Current (HO) | 105 A |
| Output Frequency Range | 0–550 Hz |
| Switching Frequency | 2–8 kHz |
| Overload Capacity | LO: 150% for 3 s / 110% for 57 s HO: 200% for 3 s / 150% for 57 s |
| Control Modes | V/f Control, Sensorless Vector Control |
| Integrated EMC Filter | None (Unfiltered Version) |
| Braking Chopper | Integrated |
| Enclosure Rating | IP20 / UL Open Type |
Mechanical & Environmental
| Specification | Details |
|---|---|
| Dimensions (H × W × D) | 708 mm × 305 mm × 357 mm |
| Approx. Weight | 57 kg (125.6 lb) |
| Mounting Type | Panel or Wall Mount |
| Cooling Method | Forced-air internal fan |
| Operating Temperature | –20 °C to +40 °C (LO) / –20 °C to +50 °C (HO) |
| Installation Altitude | Up to 1000 m (derating above 1000 m) |
| Humidity | 5–95% non-condensing |
Control & Communication
| Specification | Details |
|---|---|
| Digital Inputs / Outputs | Configurable via connected Control Unit |
| Analog Inputs / Outputs | Supported through Control Unit interface |
| Fieldbus Interface | PROFINET / PROFIBUS (via CU module) |
| Safety Functions | Safe Torque Off (STO) via Control Unit |
| System Compatibility | Compatible with SINAMICS G120 and G120C drive systems |
Compliance & Ratings
-
IEC/EN 61800-3 (EMC)
-
IEC/EN 61800-5-1 (Safety)
-
UL / CSA / CE Certified
-
RoHS / REACH Compliant
Applications
-
Heavy-duty industrial automation and large motor drives (75–100 HP range)
-
Pumps, compressors, and conveyors in continuous duty operation
-
OEM machinery using external EMC filtering
-
Process control systems and high-capacity automation cabinets
-
Regenerative braking and energy recovery in high-power systems
