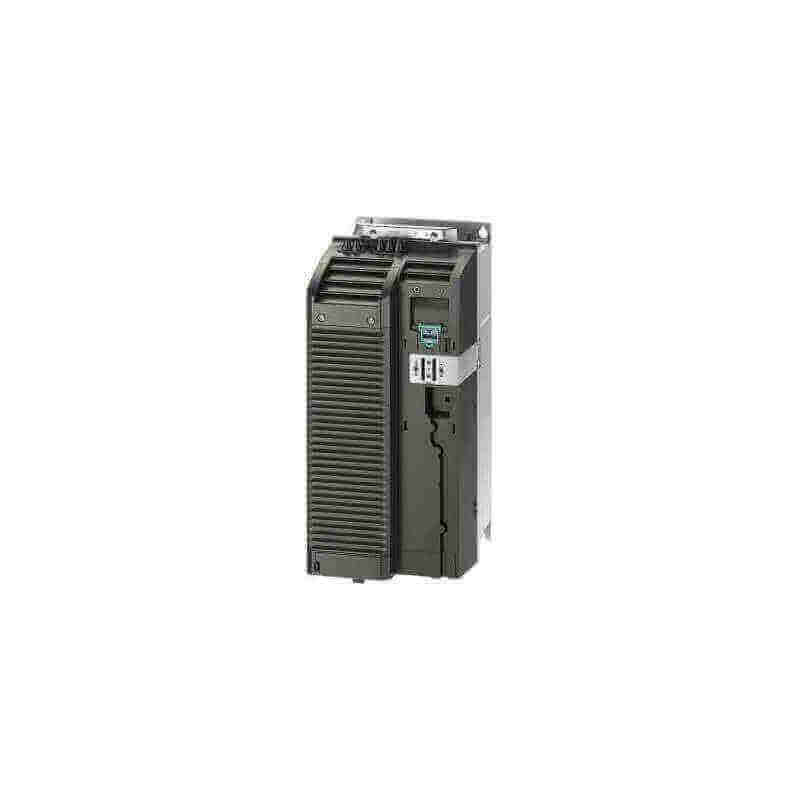

6SL3210-1PE26-0AL0
Product Overview
The Siemens SINAMICS PM240-2 (6SL3210-1PE26-0AL0) is a three-phase power module designed for integration with the SINAMICS G120 modular drive system.
It operates on a 380–480 V AC input and features an integrated Class A EMC filter and built-in braking chopper.
This model delivers approximately 30 kW (40 HP) in Low Overload (LO) mode and 22 kW (30 HP) in High Overload (HO) mode, making it an excellent choice for industrial automation, pumping systems, conveyors, and other high-performance motor control applications.
The PM240-2 series is known for its compact, efficient, and robust construction, designed for control cabinet installation with IP20 open-type protection.
Electrical & Operational Specifications
| Specification | Details |
|---|---|
| Input Voltage | 3-Phase 380–480 V AC (±10%) |
| Rated Power (LO) | 30 kW (40 HP) |
| Rated Power (HO) | 22 kW (30 HP) |
| Rated Input Current (LO) | 57 A |
| Rated Input Current (HO) | 50 A |
| Rated Output Current (LO) | 49 A |
| Rated Output Current (HO) | 40 A |
| Output Frequency Range | 0–550 Hz |
| Switching Frequency | 2–8 kHz |
| Overload Capacity | LO: 150% for 3 s / 110% for 57 s HO: 200% for 3 s / 150% for 57 s |
| Control Modes | V/f Control, Sensorless Vector Control |
| Integrated EMC Filter | Class A (Filtered Version) |
| Braking Chopper | Integrated |
| Enclosure Rating | IP20 / UL Open Type |
Mechanical & Environmental
| Specification | Details |
|---|---|
| Dimensions (H × W × D) | 472 mm × 200 mm × 237 mm |
| Approx. Weight | 18.5 kg (40.8 lb) |
| Mounting Type | Panel or Wall Mount |
| Cooling Method | Forced-air internal fan |
| Operating Temperature | –20 °C to +40 °C (LO) / –20 °C to +50 °C (HO) |
| Installation Altitude | Up to 1000 m (derating above 1000 m) |
| Humidity | 5–95% non-condensing |
Control & Communication
| Specification | Details |
|---|---|
| Digital Inputs / Outputs | Configurable via connected Control Unit |
| Analog Inputs / Outputs | Supported through Control Unit interface |
| Fieldbus Interface | PROFINET / PROFIBUS (via CU module) |
| Safety Functions | Safe Torque Off (STO) via Control Unit |
| System Compatibility | Compatible with SINAMICS G120 and G120C drive systems |
Compliance & Ratings
-
IEC/EN 61800-3 (EMC)
-
IEC/EN 61800-5-1 (Safety)
-
UL / CSA / CE Certified
-
RoHS / REACH Compliant
Applications
-
Medium- to high-power automation systems (30–40 HP range)
-
Pumps, compressors, conveyors, and mixers
-
OEM machinery with integrated braking and EMC filtering requirements
-
Industrial control cabinets using the SINAMICS G120 system
-
Energy-efficient drive systems for manufacturing and processing
