Product Overview

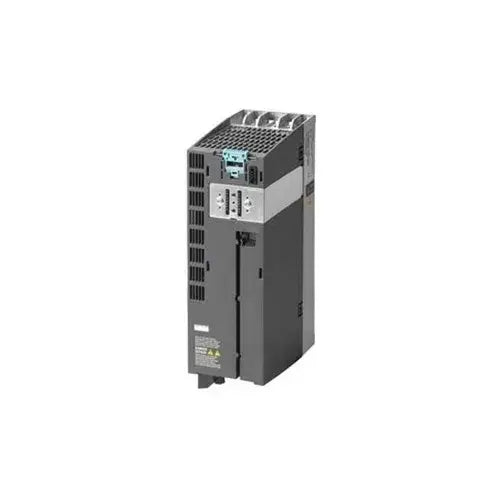

Model: 6SL3210-1PE18-0UL1
 Classification: SINAMICS G120 PM240-2 Power Module (Unfiltered, with Integrated Braking Chopper)
Purpose: Provides motor power conversion for SINAMICS G120 drive systems. Converts 3-phase AC input into variable AC output for controlling induction motors. Includes integrated braking chopper for dynamic braking, suitable for 380–480 V systems.

Electrical & Operational Specifications

• Input Voltage (Line): 3-phase AC, 380–480 V ±10%

• Frequency Range: 47–63 Hz

• Rated Output Power (Motor):

  • Low Overload (LO): 3.0 kW (~4 HP)

  • High Overload (HO): 2.2 kW (~3 HP)

• Output Current: ~7.7 A (nominal)

• Input Current: ~10.1 A (LO conditions)

• Overload Capability:

  • High Overload (HO): 200% for 3 s, 150% for 57 s, 100% for 240 s

  • Low Overload (LO): 150% for 3 s, 110% for 57 s, 100% for 240 s

• Temperature Range:

  • –10 to +40 °C (LO)

  • –10 to +50 °C (HO)

• Enclosure Rating: IP20 / UL open type

• Cooling: Internal forced-air

Physical Specifications

• Dimensions (H × W × D): ~196 × 73 × 165 mm

• Weight: ~1.38 kg (~3 lb)

• Construction: Compact Booksize module

Interface & Capacity

• Integrated Features: Built-in braking chopper for energy dissipation

• Application: For SINAMICS G120 drive systems, modular with Control Unit (CU) and Operator Panel (IOP/ BOP)

• Connections: Screw-type terminals for line input, motor output, and DC link connections

• Compliance: CE, cULus, Siemens SINAMICS standards

Summary Table
