6SL3210-1KE21-3UF1
Product Overview

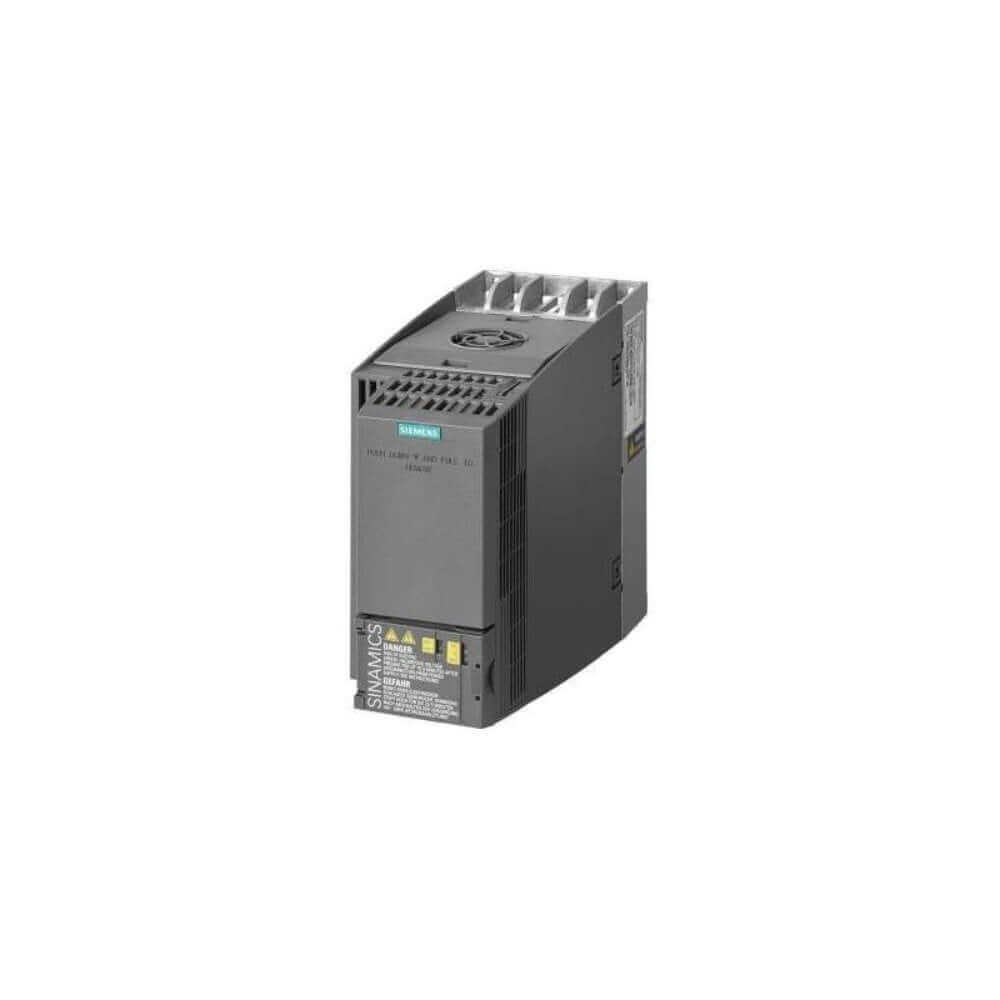

The Siemens SINAMICS G120C (6SL3210-1KE21-3UF1) is a compact, high-efficiency 3-phase variable frequency drive (VFD) engineered for precision motor control and automation applications. It operates on a 380–480 V AC 3-phase power supply, delivering 5.5 kW (7.5 HP) in Low Overload mode and 4.0 kW (5 HP) in High Overload mode. The “UF” variant is unfiltered, making it ideal for systems that use an external EMC filter. With integrated Safe Torque Off (STO) and PROFINET communication, this model is built for reliable and versatile performance in demanding industrial environments.
Electrical & Operational Specifications
| Specification | Details |
|---|---|
| Input Voltage | 3-Phase 380–480 V AC (-20% / +10%) |
| Power Rating (Low Overload) | 5.5 kW (7.5 HP) – 150% for 3 s / 110% for 57 s (300 s cycle) |
| Power Rating (High Overload) | 4.0 kW (5 HP) – 200% for 3 s / 150% for 57 s (300 s cycle) |
| Output Current | 16.5 A (Low Overload) / 12.8 A (High Overload) |
| Frequency Range | 0–599 Hz |
| Switching Frequency | Nominal 4 kHz (adjustable up to 16 kHz with derating) |
| Overload Capacity | LO: 150% for 3 s / 110% for 57 s HO: 200% for 3 s / 150% for 57 s |
| Control Modes | V/f Control, Sensorless Vector, Torque Control |
| Integrated Safety | Safe Torque Off (STO) |
| EMC Filter | External filter required (Unfiltered version) |
| Fieldbus Interface | Embedded PROFINET Communication |
Mechanical & Environmental
| Specification | Details |
|---|---|
| Enclosure Rating | IP20 (Open Type) |
| Frame Size | FSB |
| Mounting Type | Wall or Panel Mount |
| Cooling Method | Forced Air |
| Approx. Weight | ≈ 2.1 kg (4.6 lb) |
| Dimensions (H × W × D) | 196 mm × 100 mm × 203 mm |
| Operating Temperature | -10 °C to +40 °C (derating above 40 °C) |
| Installation Altitude | Up to 1000 m (derating above 1000 m) |
| Humidity | 5–95% non-condensing |
Control & Communication
| Specification | Details |
|---|---|
| Digital I/O | 6 Inputs / 2 Outputs |
| Analog I/O | 1 Input / 1 Output |
| Relay Outputs | 1 Form C Relay (programmable) |
| Safety Function | Safe Torque Off (STO), SIL 2 / PL d Certified |
| Integrated Networks | PROFINET communication support |
Compliance & Ratings
-
IEC/EN 61800-3 (EMC)
-
IEC/EN 61800-5-1 (Safety)
-
UL / CSA / CE Certified
-
RoHS / REACH Compliant
Applications
-
Industrial machinery, fans, pumps, and conveyors
-
OEM automation systems requiring compact drives
-
Control panels using external EMC filters
-
Applications needing integrated safety and PROFINET networking
