Product Overview

Model: 6SL3162-2ME01-0AC0

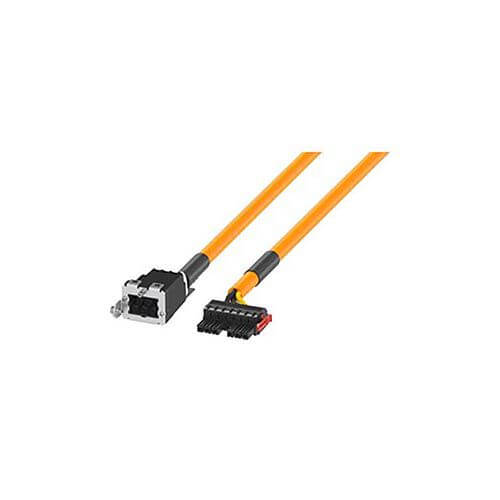

 Classification: SINAMICS S120 Booksize Adapter Cable (C/D-Type)
Purpose: Provides a connection between SINAMICS S120 motor modules (3–18 A range) and C/D-type module connections. Designed for compatibility during system retrofits and upgrades, ensuring reliable motor power and brake connections.

Electrical & Operational Specifications

• Supported Modules: SINAMICS S120 Motor Modules (3–18 A)

• Cable Cross-Section:

  • Power Phases: 4 × 2.5 mm²

  • Brake / Holding Brake: 2 × 1.5 mm²

• Maximum Current Capacity:

  • 18 A continuous at ≤40 °C

  • 10.8 A continuous at 55 °C (derated)

• Operating Temperature Range: 0–40 °C (no derating), with linear derating up to 55 °C

• Minimum Bending Radius: 12.5 mm (~0.5 in)

• Compliance: RoHS, Siemens SINAMICS S120 specifications

Physical Specifications

• Cable Length: 1 m (~39.4 in)

• Weight: ~0.7 kg (~1.5 lb)

• Construction: Shielded conductors with Booksize C/D-type terminations

Interface & Capacity

• Compatibility: Direct adapter for SINAMICS S120 C/D-Type Booksize modules

• Connections: Secure termination with Siemens-specified tightening torques

• Standards: Designed to Siemens quality standards for industrial drive systems

Summary Table
