Product Overview

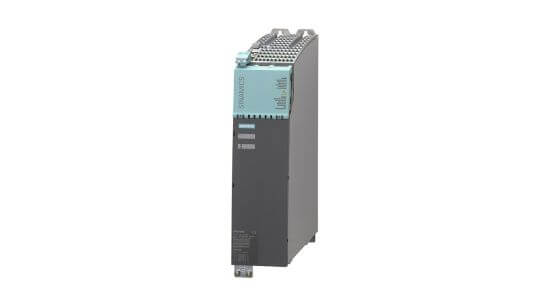

Model: 6SL3130-7TE23-6AA3
 Classification: SINAMICS S120 Active Line Module (Booksize, internal air cooling)
Purpose: Supplies the regulated DC link for SINAMICS S120 drive systems. Converts 3-phase AC into a stabilized 600 V DC link, delivering up to 60 A continuous current. Designed for compact automation systems with regenerative operation and overload support.

Electrical & Operational Specifications

• Input Voltage (Line): 3 AC, 342–528 V, 47–63 Hz

• DC Link Voltage: 600 V DC (nominal, ~540 V for certain duty points)

• Rated Power (Continuous): 36 kW

• S6 Duty Power (40%): 47 kW

• Maximum Power: 70 kW

• DC Link Current:

  • Continuous: ~60 A

  • Overload (S6, 40%): ~79 A

  • Peak: ~118 A

• Input Current (Nominal):

  • ~62 A @ 380 V

  • ~59 A @ 400 V

  • ~51 A @ 480 V

• Overload / Peak Input Current: ~76 A (S6 duty @ 400 V) / ~112 A (peak)

• DC Link Capacitance: ~1,410 µF

• Electronics Supply: 24 V DC (–15% / +20%), ~1.5 A

• Power Loss: ~0.41 kW at rated power

• Sound Pressure Level: ~65 dB

• Ambient Conditions: 0–40 °C; installation altitude ≤1000 m without derating

Physical Specifications

• Dimensions (W × H × D): ~150 × 380 × 270 mm

• Weight: ~10.0 kg (≈22 lb)

• Enclosure Rating: IP20 / UL open type, Booksize construction

Interface & Capacity

• Maximum Motor Cable Lengths:

  • Shielded: up to 630 m

  • Unshielded: up to 850 m

• Cooling: Internal forced-air cooling

• Integration: Compact Booksize module with standard busbar and PE connections

• Certifications: CE, cULus
