Product Overview

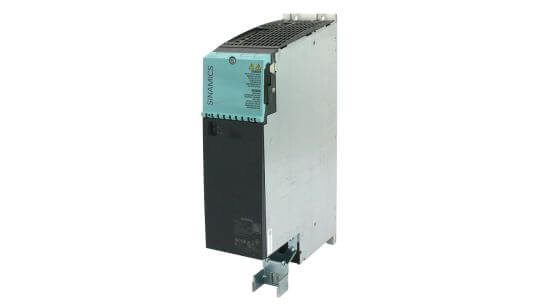

Model: 6SL3120-1TE23-0AC0
 Classification: Single Motor Module for SINAMICS S120 drive systems (Booksize D-type)
Purpose: Converts a 600 V DC supply into a 400 V AC output to deliver up to 60 A to the motor, with motor control handled via DRIVE-CLiQ from a CU control unit.

Electrical & Operational Specifications

• Input Voltage: 510–720 V DC (nominal: 600 V DC)

• Output Voltage: 400 V, 3-phase

• Output Current:

  • Base Load: 52 A

  • Continuous (Rated): 60 A

  • Peak for S6 duty (40%): ~80 A

• Power Loss: ~450–600 W

• Sound Pressure Level: ~70 dB (at 1 m)

• Cooling: Internal forced-air cooling (~0.080 m³/s)

• Safety Integrity: SIL 2 per IEC 61508; Performance Level d, Category 3 per ISO 13849-1

• Control Interface: Integrated DRIVE-CLiQ ports with dust-sealing plug

Physical Specifications

• Dimensions (W × H × D): ~150 mm × 380 mm × 270 mm

• Weight: ~16 kg (~35 lb)

• Enclosure Rating: IP20 / UL open-type

Interface & Capacity

• Control Busbars:

  • 24 V DC electronics busbar: 20 A capacity

  • DC link busbars: support up to 600 A (expandable with accessory bridges)

• Output Frequency:

  • Servo control: up to 650 Hz (pulse sample at 8 kHz, 60% current)

  • Vector control: ~300 Hz

  • V/f control: ~600 Hz

• Maximum Motor Cable Length:

  • Shielded: 50 m

  • Unshielded: 75 m
