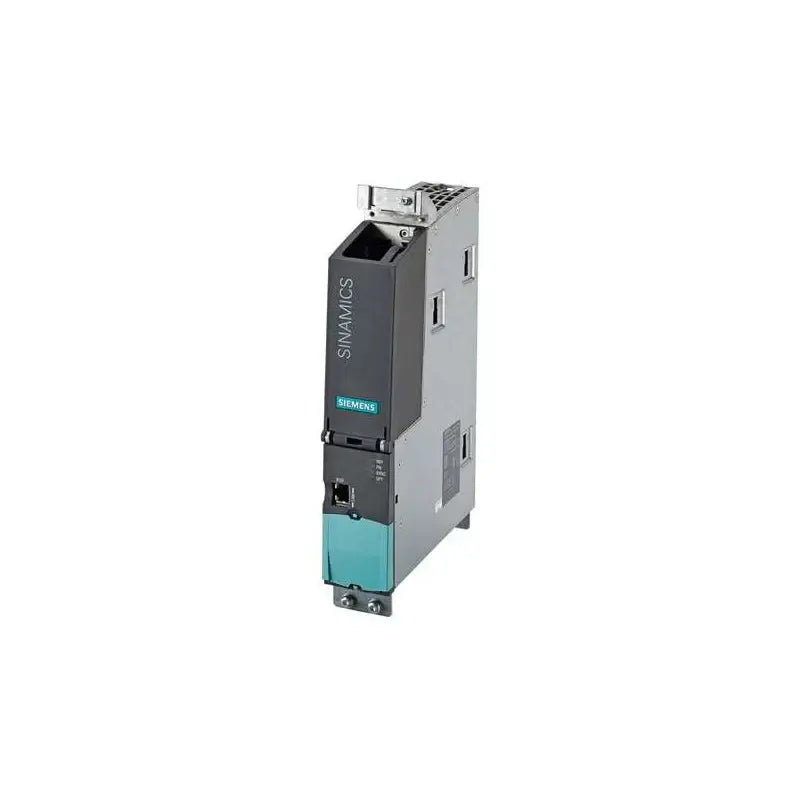

6SL3040-1MA00-0AA0

Product Overview

• Model: 6SL3040-1MA00-0AA0

• Series: SINAMICS S120 (CU320-2 DP)

• Function: Control Unit featuring a PROFIBUS DP communication interface, optimized for high-performance single-axis motion control.

Electrical & Interface Details

• Power Supply: 24 V DC

• Power Consumption: Typical ~1 A, maximum power loss ~24 W

• Digital Inputs: 12 potential-free digital inputs plus 8 additional bidirectional inputs (some configurable as non-potential-free)

• Communication Interfaces:

  • PROFIBUS DP for integration into distributed automation systems

  • Embedded DRIVE-CLiQ interface (communicates with motors/sensors via serial link)

  • No CompactFlash memory card included

Physical Specifications

• Dimensions: Approx. 50 mm (W) × 300 mm (H) × 226 mm (D)

• Weight: ~2.2 kg

Environmental & Operating Conditions

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: –25 °C to +55 °C

• Transport Temperature: –40 °C to +70 °C

• Operating Humidity: Up to 95% non-condensing at 40 °C

Certifications

• Standards & Compliance: CE, cULus, EAC, KC, RCM
