WEINTEK-HMI-MT8072iP Touch Panel

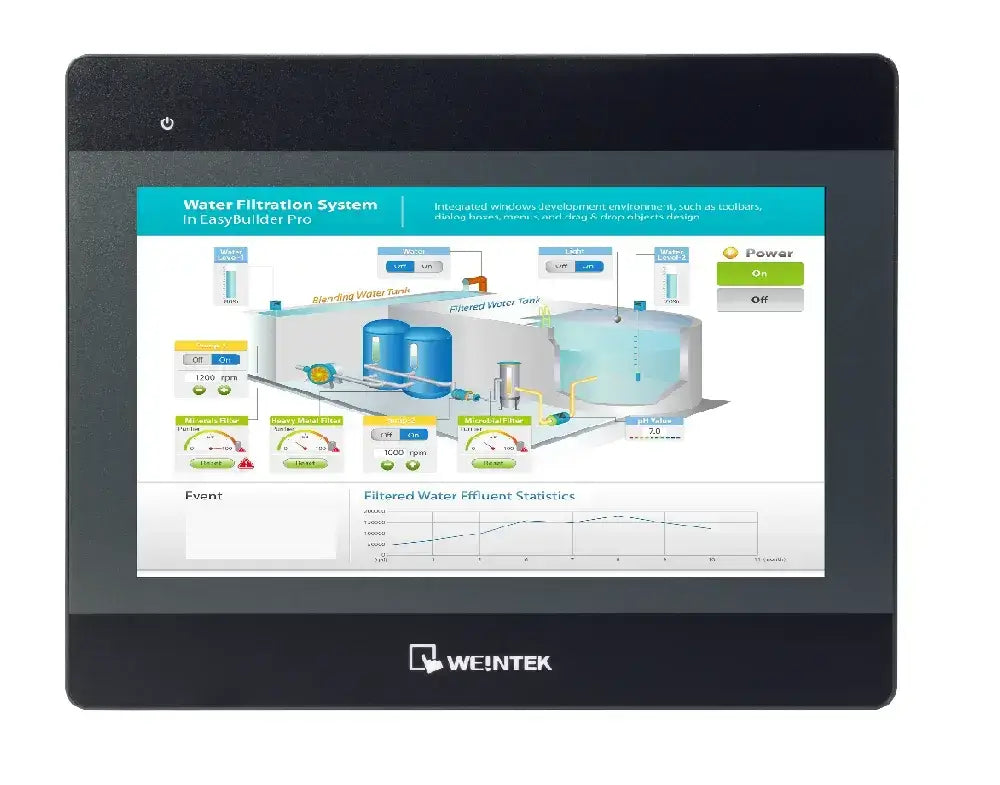

Weintek-HMI-MT8072iP – 7″ Industrial HMI Touch Panel

The Weintek MT8072iP HMI Touch Panel is a reliable and cost-effective industrial automation display designed for machine control and process visualization. With a bright 7-inch widescreen TFT display, rugged IP65/NEMA 4 front protection, and multiple communication options, it delivers exceptional performance in industrial environments.

Built on Weintek’s iP series platform, the MT8072iP offers enhanced memory, built-in Ethernet, isolated power design, and full compatibility with Weintek EasyBuilder Pro software — making it ideal for OEMs, integrators, and control panel builders looking for dependable operator interface solutions.

🖥️ Display & Touch

• Display Type: 7.0″ TFT LCD
• Resolution: 800 × 480 pixels (WVGA)
• Brightness: 450 cd/m²
• Contrast Ratio: 500 : 1
• Color Depth: 16.7 million colors
• Backlight: LED with >30,000-hour lifetime
• Touch Panel: 4-wire resistive touch
• Touch Accuracy: ±2% (X and Y axes)

⚙️ Hardware & Memory

• Processor: High-performance RISC processor (iP series)
• RAM: 128 MB
• Flash Memory: 256 MB
• System Performance: Optimized for responsive touch and real-time updates

🔌 Communication & I/O

• Ethernet: 1 × 10/100 Base-T port for network and PLC communication
• Serial Ports:
• • COM1: RS-232 / RS-485 (2-wire / 4-wire, supports MPI 187.5k)
• • COM2 / COM3: RS-485 (2-wire)
• USB Host: 1 × USB 2.0 for program transfer or data logging
• Noise Immunity: Internal power isolation for reliable operation in noisy environments
• Supported Protocols: Modbus RTU/TCP, Siemens PPI, Allen-Bradley DF1, Mitsubishi FX, and more

⚡ Power & Electrical

• Input Voltage: 24 V DC ± 20 %
• Power Consumption: ~2 A inrush current at startup, steady load lower
• Power Isolation: Built-in
• Withstand Voltage: 500 VAC for 1 minute
• Insulation Resistance: > 50 MΩ @ 500 V DC

🌡️ Mechanical & Environmental

• Front Protection: IP65 / NEMA 4 (front panel)
• Mounting Type: Panel-mount
• Operating Temperature: 0 °C to +50 °C
• Storage Temperature: –20 °C to +60 °C
• Relative Humidity: 10 % – 90 % RH (non-condensing)
• Shock & Vibration: Designed for industrial durability
• Cooling Method: Fanless operation for maintenance-free reliability
• PCB Coating: Protective coating for moisture and dust resistance

⭐ Key Features & Highlights

• Compact 7-inch widescreen HMI for versatile control systems
• Dual RS-485 ports with MPI 187.5k communication
• Fanless cooling and sealed front panel for industrial reliability
• Isolated power design improves electrical noise resistance
• Supports Weintek EasyBuilder Pro for flexible configuration
• Ideal for OEM equipment, factory automation, and process control

🏭 ReVolt Automation – Your Industrial Control Partner

ReVolt Automation supplies new-surplus HMI touch panels, industrial automation displays, and control equipment from trusted global brands like Weintek, Siemens, Schneider Electric, and ABB.

Every Weintek MT8072iP is factory-sealed, tested, and backed by a 1-year limited warranty for assured reliability and performance.

Condition: New Surplus, Factory Sealed

Warranty: 1-Year Limited Warranty
