SCHNEIDER ELECTRIC-ATS480C79Y-

Schneider Electric-ATS480C79Y

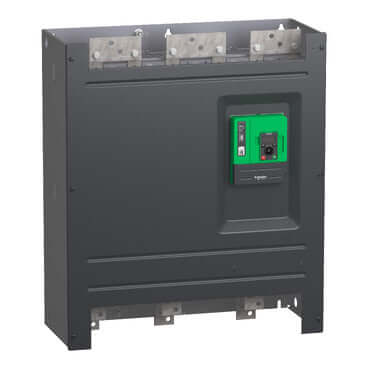

The Schneider Electric ATS480C79Y Soft Starter is a high-performance, heavy-duty motor starter engineered for smooth torque-controlled acceleration and deceleration of large motors. Designed for energy efficiency and motor protection, this surplus automation equipment supports a wide input range of 208–690 V AC, making it suitable for global industrial systems and demanding continuous-duty applications.

At ReVolt Automation, we offer new surplus Schneider Electric Soft Starters that are factory-sealed, fully tested, and backed by a 1-year limited warranty for performance and reliability.

⚙️ Electrical Specifications

• Rated Supply Voltage (Us): 208–690 V AC
• Supply Frequency: 50 / 60 Hz
• Control Circuit Voltage (Uc): 110–230 V AC
• Rated Output Current (Icl): 790 A
• Motor Power (AC-3): 220 kW @ 230 V • 400 kW @ 400 V • 710 kW @ 690 V
• Utilization Category: AC-53A
• Overload Capacity: 4 × In for 10 seconds
• Start / Stop Method: Torque control with adjustable current limit
• Bypass Contactor: Integrated (internal)
• Efficiency: Internal bypass minimizes steady-state power losses

🔌 Control, I/O & Communication

• Logic Inputs: 3 × LI (LI1, LI2, LI3) – 5 mA, 4.3 kΩ impedance
• Relay Outputs: 2 × configurable for Run, Trip, Fault, or Ready
• Relay Contact Ratings: 5 A @ 250 V AC / 2 A inductive
• PTC Input: 750 Ω motor thermal protection
• Communication: RS-485 (Modbus RTU)
• Transmission Rates: 4,800 / 9,600 / 19,200 bps
• Control Options: Local or remote operation via wired I/O or Modbus network

🌡️ Environmental & Protection Ratings

• Protection Degree: IP00 (open frame)
• Cooling Method: Forced convection
• Operating Temperature: –15 °C to +40 °C (full rating)
• Derating Above 40 °C: 2 % per °C
• Storage Temperature: –25 °C to +70 °C
• Altitude Rating: ≤ 1,000 m (no derating) • > 1,000 m apply 2 % per 100 m
• Noise Level: ≈ 56 dB
• Compliance: IEC 60947-4-2 and UL standards

🧱 Mechanical Specifications

• Frame Size: E (extra-heavy industrial frame)
• Dimensions (H × W × D): 890 × 770 × 329 mm
• Weight: ≈ 115 kg
• Mounting Orientation: Vertical ± 10°
• Ventilation: Bottom-to-top airflow; maintain clearance for cooling

⭐ Key Features & Highlights

• Smooth torque-controlled acceleration and deceleration
• Integrated bypass contactor reduces heat and power loss
• Wide 208–690 V supply range for global compatibility
• Built-in protection against overload, phase loss, stall, and thermal events
• RS-485 (Modbus RTU) communication for system monitoring and diagnostics
• Rugged open-frame design for heavy-duty panel installations
• Ideal for large industrial motors and high-load systems

🏭 ReVolt Automation – Industrial Surplus Experts

ReVolt Automation supplies premium surplus automation equipment from trusted global brands like Schneider Electric, Siemens, and ABB. The Schneider Electric ATS480C79Y Soft Starter is available as new, factory-sealed surplus with verified performance and fast worldwide shipping.

Condition: New surplus, factory sealed

Warranty: 1-year limited warranty
