SCHNEIDER ELECTRIC-ATS480C32Y-

Schneider Electric-ATS480C32Y

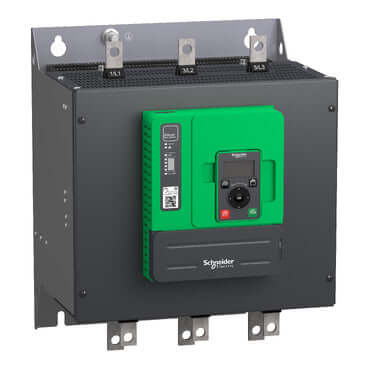

The Schneider Electric ATS480C32Y Soft Starter delivers dependable torque-controlled acceleration and deceleration for medium-to-large industrial motors. Engineered for performance, safety, and energy efficiency, this surplus automation equipment minimizes mechanical stress, protects connected motors, and extends system lifespan.

At ReVolt Automation, we supply new surplus Schneider Electric Soft Starters that are factory-sealed, quality-tested, and backed by a 1-year limited warranty — perfect for OEMs, system integrators, and maintenance teams seeking reliable, cost-effective control solutions.

⚙️ Electrical Specifications

• Rated Supply Voltage (Us): 208–690 V AC
• Supply Frequency: 50 / 60 Hz
• Control Circuit Voltage (Uc): 110–230 V AC
• Rated Output Current (Icl): 320 A
• Motor Power (AC-3): 90 kW @ 230 V • 160 kW @ 400 V • 315 kW @ 690 V
• Utilization Category: AC-53A
• Overload Capacity: 4 × In for 10 seconds
• Start / Stop Method: Torque control with adjustable current limit
• Bypass Contactor: Integrated (internal)
• Efficiency: Integrated bypass minimizes heat and power loss in steady-state operation

🔌 Control, I/O & Communication

• Logic Inputs: 3 × LI (LI1, LI2, LI3) – 5 mA, 4.3 kΩ impedance
• Relay Outputs: 2 × R (R1, R2) configurable for Run, Trip, Fault, Ready
• Relay Contact Ratings: 5 A @ 250 V AC / 2 A inductive
• PTC Input: 750 Ω motor thermal protection
• Communication Interface: RS-485 (Modbus RTU)
• Transmission Rates: 4,800 / 9,600 / 19,200 bps
• Control Options: Local or remote control via wired I/O or Modbus network

🌡️ Environmental & Protection Ratings

• Protection Degree: IP00 (open frame with heatsink)
• Cooling Method: Forced convection
• Operating Temperature: –15 °C to +40 °C (full rating)
• Derating Above 40 °C: 2 % per °C
• Storage Temperature: –25 °C to +70 °C
• Altitude Rating: ≤ 1,000 m (no derating); > 1,000 m apply 2 % per 100 m
• Pollution Degree: 2 (industrial environments)
• Noise Level: ≈ 56 dB
• Compliance: IEC 60947-4-2 and UL standards

🧱 Mechanical Specifications

• Frame Size: C (heavy-duty industrial frame)
• Dimensions (H × W × D): 380 × 320 × 277 mm
• Weight: ≈ 18.2 kg
• Mounting Orientation: Vertical ± 10°
• Ventilation: Bottom-to-top airflow — ensure unobstructed clearance

⭐ Key Features & Highlights

• Torque-controlled acceleration and deceleration for motor longevity
• Integrated bypass contactor reduces energy consumption and heat
• Built-in motor protection against overload, stall, and phase loss
• RS-485 (Modbus RTU) communication for diagnostics and monitoring
• Wide 208–690 V supply range for international compatibility
• Compact, open-frame design for panel integration
• Ideal for pumps, fans, compressors, and industrial machinery

🏭 ReVolt Automation – Industrial Surplus Experts

ReVolt Automation provides high-quality surplus automation equipment, including the Schneider Electric ATS480C32Y Soft Starter and a wide range of industrial control products from Siemens, ABB, and Allen-Bradley. All units are new surplus, factory sealed, and ship fast worldwide.

Condition: New surplus, factory sealed

Warranty: 1-year limited warranty
