SCHNEIDER ELECTRIC-ATS480C14Y-

Schneider Electric-ATS480C14Y | ReVolt Automation

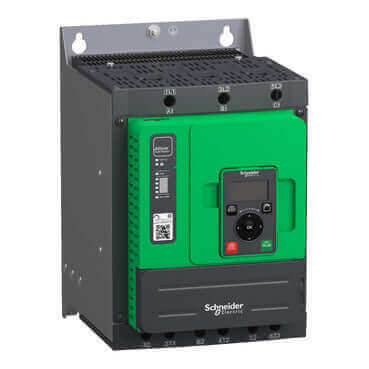

The Schneider Electric ATS480C14Y Soft Starter is engineered for dependable motor control with smooth, torque-controlled acceleration and deceleration. Ideal for heavy-duty industrial operations, this surplus automation equipment helps reduce electrical stress and mechanical wear, extending motor life while improving energy efficiency.

Available through ReVolt Automation, all Schneider Electric Soft Starters are factory-sealed, new surplus, and covered by a 1-year limited warranty for reliable, long-term use in industrial environments.

⚙️ Electrical Specifications

• Rated Supply Voltage (Us): 208–690 V AC
• Supply Frequency: 50 / 60 Hz
• Control Circuit Voltage (Uc): 110–230 V AC
• Rated Output Current (Icl): 140 A
• Motor Power (AC-3): 37 kW @ 230 V • 75 kW @ 400 V • 132 kW @ 690 V
• Utilization Category: AC-53A
• Overload Capacity: 4 × In for 10 seconds
• Start / Stop Method: Torque-controlled with adjustable current limit
• Bypass Contactor: Integrated (internal)
• Insulation Voltage (Ui): 690 V AC
• Efficiency: Internal bypass reduces power loss in steady-state operation

🔌 Control, I/O & Communication

• Logic Inputs: 3 × LI (LI1, LI2, LI3) – 5 mA, 4.3 kΩ impedance
• Relay Outputs: 2 × R (R1, R2) configurable for Run, Trip, Fault, Ready
• Relay Contact Ratings: 5 A @ 250 V AC / 2 A (inductive)
• Minimum Switching Current: 100 mA @ 12 V DC
• PTC Input: 750 Ω (motor thermal protection)
• Communication Interface: RS-485 (Modbus RTU)
• Transmission Rates: 4,800 / 9,600 / 19,200 bps
• Control Options: Local or remote via wired I/O or Modbus network

🌡️ Environmental & Protection Ratings

• Protection Degree: IP00 (open-frame heatsink)
• Cooling Method: Forced convection
• Operating Temperature: –15 °C to +40 °C (full rating)
• Derating Above 40 °C: 2 % per °C
• Storage Temperature: –25 °C to +70 °C
• Altitude Rating: ≤ 1,000 m (no derating); > 1,000 m apply 2 % per 100 m
• Pollution Degree: 2 (industrial environments)
• Vibration / Shock: 1 g (13–200 Hz) / 15 g, 11 ms
• Noise Level: ≈ 56 dB
• Compliance: IEC 60947-4-2 and UL standards

🧱 Mechanical Specifications

• Frame Size: C (industrial frame)
• Dimensions (H × W × D): 340 × 200 × 272 mm (approx.)
• Weight: ≈ 12 kg
• Mounting Orientation: Vertical ± 10°
• Ventilation: Bottom-to-top airflow; maintain clear spacing for cooling

⭐ Key Features & Highlights

• Smooth, torque-controlled motor start and stop to reduce wear
• Integrated bypass contactor minimizes energy loss and heat
• Wide 208–690 V input range for universal applications
• Advanced motor protection against overload, stall, and phase loss
• RS-485 (Modbus RTU) communication for diagnostics and remote control
• Compact, panel-mount design for industrial control systems
• Fully compliant with IEC and UL certification standards

🏭 ReVolt Automation – Industrial Surplus Experts

ReVolt Automation supplies top-quality surplus automation equipment, including the Schneider Electric ATS480C14Y Soft Starter and other motor-control solutions from Siemens, ABB, and Allen-Bradley. All products are factory-sealed, new surplus, and ship fast worldwide.

Condition: New surplus, factory sealed

Warranty: 1-year limited warranty
