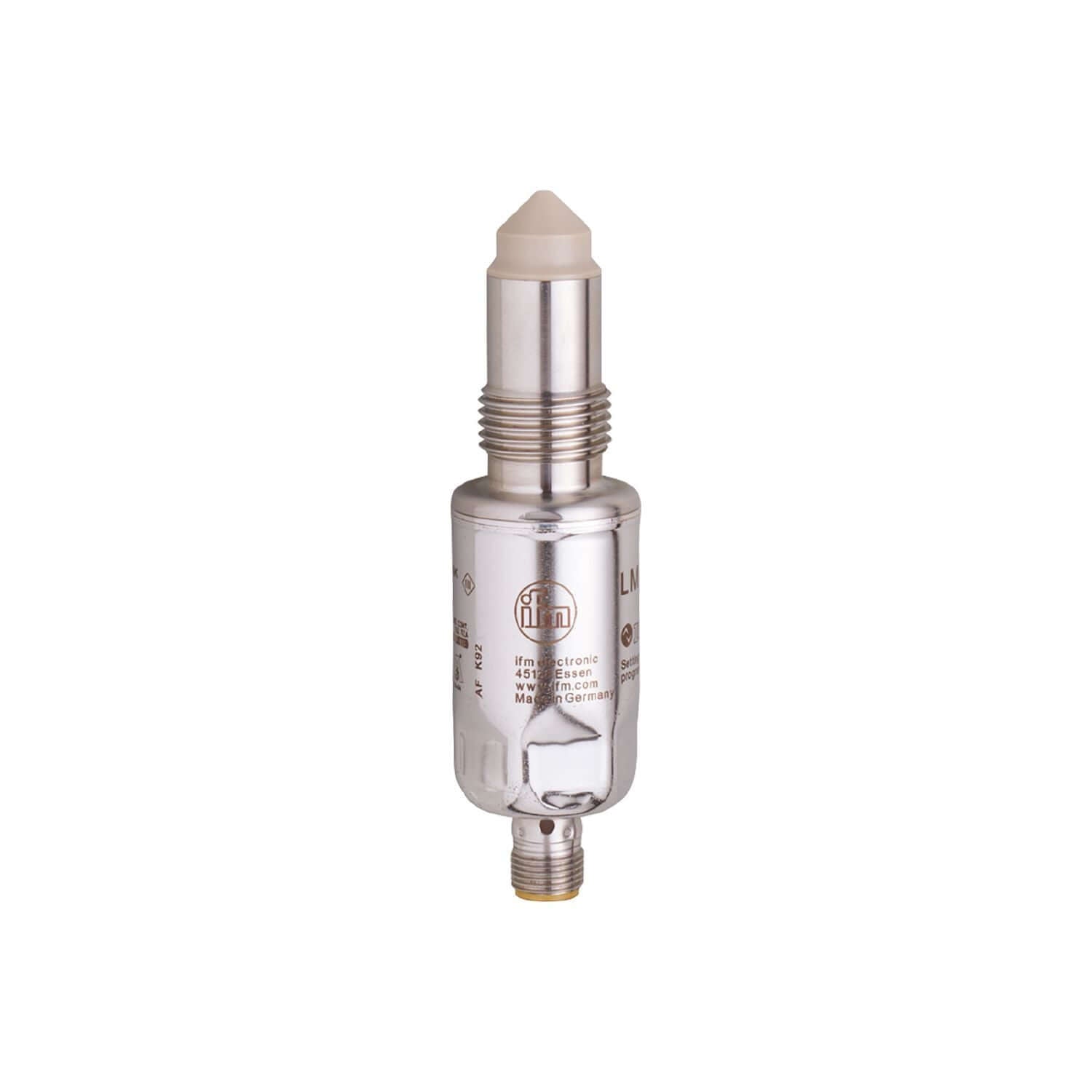

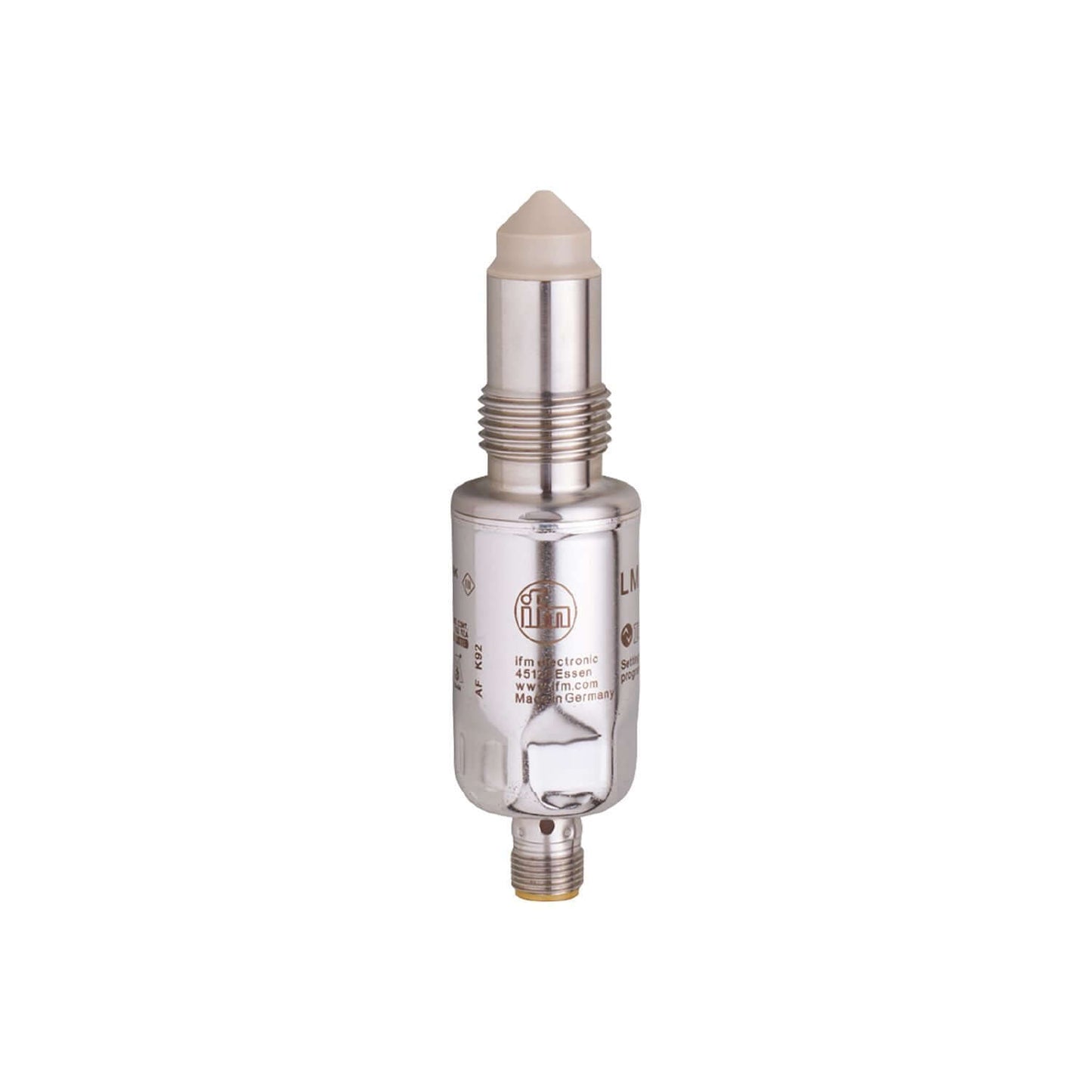

The IFM LMT104 is a hygienic capacitive point-level sensor engineered for the reliable detection of liquids, viscous substances, and powders. Built with 316L/316Ti stainless steel and FDA-compliant sealing materials, it ensures high durability and chemical resistance—making it ideal for use in food & beverage, chemical processing, and industrial automation applications.

This advanced IO-Link sensor provides two configurable outputs (NO/NC selectable), intelligent process diagnostics, and superior cleaning resistance under IP68/IP69K protection standards.

⚡ Electrical Specifications

• Supply Voltage: 18…30 V DC
• Current Consumption: < 50 mA
• Outputs: 2 × switching outputs (NO/NC selectable)
• Output Type: IO-Link 1.1 (COM2, 38.4 kBaud)
• Output Current (per channel): 100 mA
• Voltage Drop: < 2.5 V
• Electrical Protection: Short-circuit and overload protected
• Connection Interface: M12 connector (4-pin standard industrial type)
• Integration: IO-Link compatible for parameterization and data monitoring

⚙️ Mechanical Specifications

• Probe Length: 153 mm
• Process Connection: G ½ A with sealing cone
• Wetted Materials:
• • Stainless Steel 316L / 1.4404
• • Stainless Steel 316Ti / 1.4571
• • PEEK, PEI, FKM (for insulators and seals)
• Housing Material: Stainless Steel
• Weight: ≈ 0.32 kg
• Design Type: Hygienic, flush-front tip for CIP/SIP applications

🌡️ Environmental & Operational Ratings

• Operating Temperature (Liquids): –20…85 °C
• Operating Temperature (Oils): –20…100 °C
• Short-Term Temperature Resistance: Up to 150 °C (1 hour max)
• Ambient / Storage Temperature: –40…85 °C
• Pressure Range: –1…40 bar
• Protection Rating: IP68 / IP69K
• Shock Resistance: 50 g (11 ms)
• Vibration Resistance: 8 g (10–2000 Hz)
• Mean Time to Failure (MTTF): ~222 years

🧩 Functional Highlights

• Two configurable switching outputs (NO/NC)
• IO-Link communication for process data and diagnostics
• Robust stainless-steel design for hygienic environments
• Resistant to cleaning agents and high-pressure washdowns
• Maintenance-free operation with integrated temperature compensation
• Suitable for CIP/SIP cycles and pressurized process lines

📏 Summary Table

• Feature Specification Model IFM LMT104
• Type Capacitive Hygienic Level Sensor
• Supply Voltage18–30 V DC
• Outputs2 × Configurable (NO/NC) + IO-Link
• Output Current100 mA per channel
• Probe Length153 mm
• Connection G ½ A sealing cone
• Wetted Materials316L / 316Ti SS, PEEK, PEI, FKM
• Weight~0.32 kg
• Temperature Range–20…100 °C (media-dependent)
• Short-Term Temp Up to 150 °C
• Pressure Rating–1…40 bar
• ProtectionIP68 / IP69K
• MTTF~222 years

🏭 ReVolt Automation – Industrial Sensors & Control Solutions

ReVolt Automation offers a complete range of IFM level sensors, IO-Link devices, and industrial process automation components for OEMs, integrators, and end-users.

Each IFM LMT104 is new surplus, factory-sealed, and backed by a 1-year limited warranty for dependable industrial operation.

Condition: New Surplus, Factory Sealed

Warranty: 1-Year Limited Warranty
