Product Overview

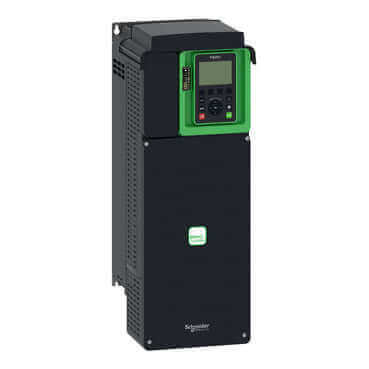

Model: ATV630D15N4
 Classification: Altivar Process ATV630 Variable Frequency Drive (IP21 / UL Type 1)
Purpose: Medium-power industrial drive designed for controlling asynchronous and synchronous motors in process and utility applications. Suitable for pumps, fans, compressors, HVAC, and general industrial machinery. Provides integrated safety, EMC filtering, and flexible communication for modern automation systems.

Electrical & Operational Specifications

• Input Voltage: 3-phase, 380–480 V AC (–15% / +10%)

• Supply Frequency: 50–60 Hz

• Motor Power Rating:

  • 15 kW (Normal Duty)

  • 11 kW (Heavy Duty)

• Horsepower Equivalent: 20 HP (ND) / 15 HP (HD)

• Rated Output Current (at 4 kHz):

  • ~31.7 A (Normal Duty)

  • ~23.5 A (Heavy Duty)

• Line Current (380/480 V):

  • ND: ~27 A @ 380 V / ~23.3 A @ 480 V

  • HD: ~20.6 A @ 380 V / ~18.1 A @ 480 V

• Output Frequency Range: 0.1–500 Hz

• Switching Frequency: 4 kHz nominal (adjustable 2–12 kHz with derating)

• Motor Control Modes: Constant torque, variable torque, optimized torque; supports synchronous & asynchronous motors

• Safety Functions: Safe Torque Off (STO, SIL 3), overload, thermal, and short-circuit protections

• EMC Filter: Integrated, Category C2 (50 m) / Category C3 (150 m)

Physical Specifications

• Dimensions (W × H × D): 211 × 546 × 232 mm

• Weight: ~13.6 kg (~30 lb)

• Enclosure Rating: IP21 (IEC) / UL Type 1

• Cooling: Forced convection

• Operating Temperature: –10 °C to +40 °C (no derating); up to +60 °C with derating

• Altitude Rating: Up to 3000 m (derating above 1000 m)

• Mounting Orientation: Vertical, wall mount ±10°

Interface & Capacity

• Digital Inputs: 8

• Analog Inputs: 3 (configurable)

• Analog Outputs: 2 (configurable)

• Relay Outputs: 3 (alarms, fault signaling, sequencing)

• Preset Speeds: Up to 16

• Communications: Built-in Ethernet & Modbus TCP/RTU; optional modules for Profibus, Profinet, CANopen, DeviceNet, etc.
