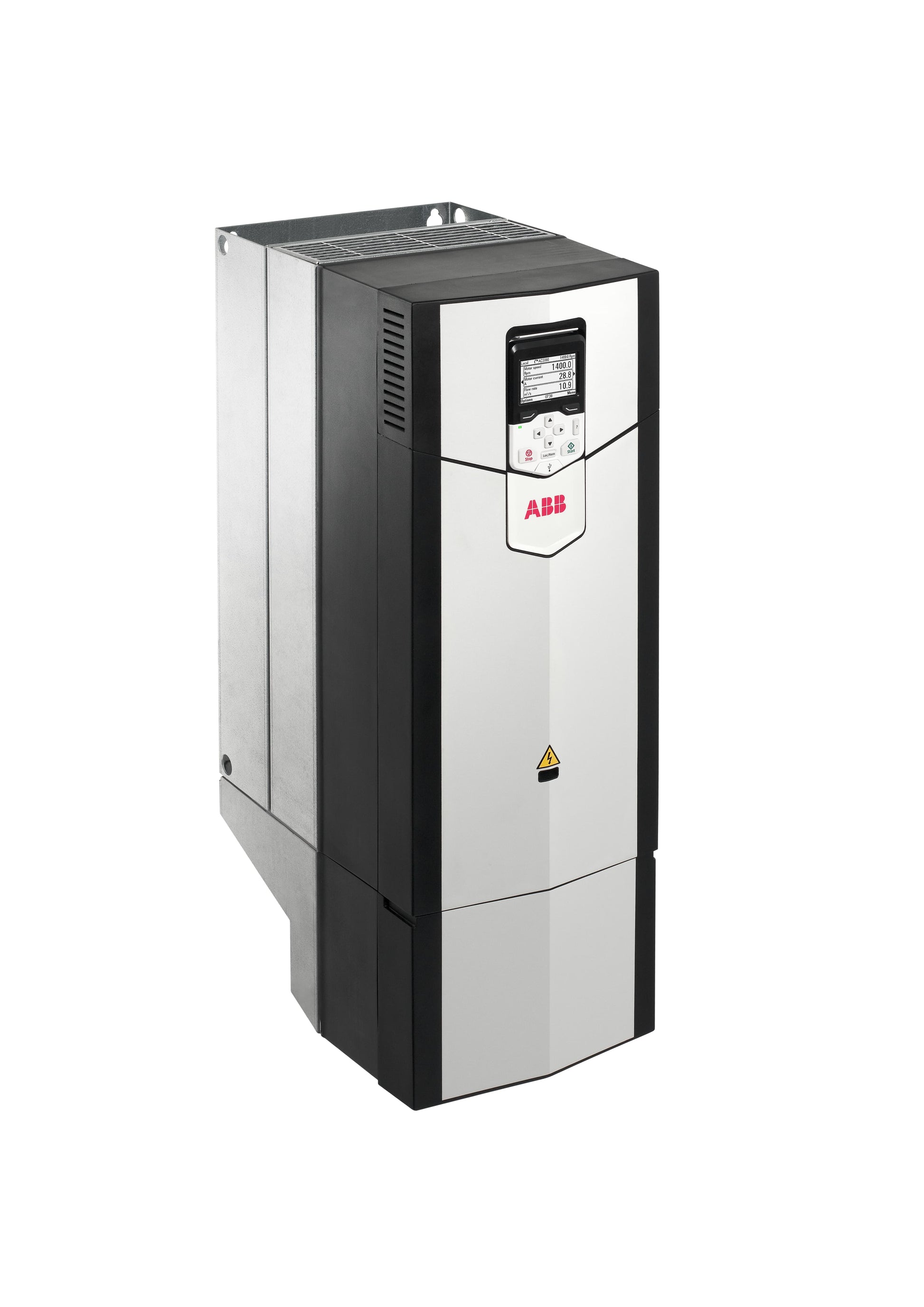

ACS880-01-124A-5

Product Overview

• Model: ABB ACS880-01-124A-5

• Type: Wall-mounted industrial low-voltage AC drive (ACS880-01 series)

• Nominal Duty (Pn): 75 kW — 124 A

• Light-Overload Rating (PLd): 100 HP (≈ 75 kW) — 124 A

• Heavy-Duty Rating (PHd): 75 HP (≈ 55 kW) — 96 A (UL rating)

• Input Voltage: 380–500 V AC, 3-phase

• Frame / Enclosure: R6 frame; IP21 standard (NEMA Type 1)

Connectivity & Control Features

• User Interface: Integrated Assistant keypad and optional Bluetooth LCD display

• Control Architecture: ABB’s advanced architecture with Direct Torque Control (DTC) for optimized torque and precision

• Functional Safety: Safe Torque Off (STO) standard; optional Safety Functions Module available

• Connectivity:

  • USB interface

  • RS-485 (Modbus RTU)

  • Fieldbus support: PROFINET, PROFIBUS, EtherNet/IP, Modbus TCP, DeviceNet

• Integrated Features: Built-in EMC filter, harmonic mitigation choke, controllable cooling fan, coated internal boards, and incoming air temperature monitoring

Physical & Operational Specs

• Dimensions (H × W × D): 726 mm × 251 mm × 357 mm

• Net Weight: 43kg

• Operating Temperature: Up to +50 °C (derating may apply)

• Thermal Dissipation & Cooling: Integrated fan with temperature monitoring to protect against heat-related faults
