Product Overview

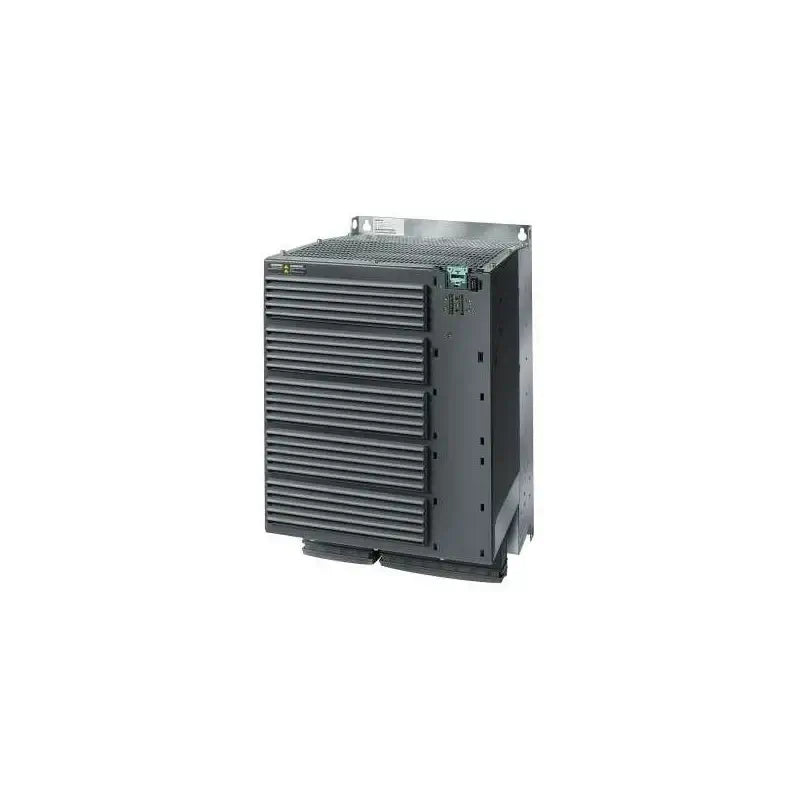

Model: 6SL3225-0BE35-5AA0
 Classification: SINAMICS G120 Power Module (PM250) with Integrated Line Filter
Purpose: Provides the main power conversion stage in SINAMICS G120 systems. Converts 3-phase AC input into DC/DC link and generates AC output for motor operation. Features integrated Class A line filter and supports optional regenerative operation.

Electrical & Operational Specifications

• Input Voltage: 3-phase, 380–480 V AC (±10 %)

• Rated Output Power: 75 kW (Low Overload mode) / 55 kW (High Overload mode)

• Rated Output Current: 145 A (LO) / 110 A (HO)

• Peak Current: Up to 220 A

• Supply Filter: Integrated Class A line filter

• Regeneration: Optional regenerative capability

• Output Voltage: 400 V AC nominal

• Switching Frequency: ~4 kHz typical

• Ambient Operating Temperature: 0 °C to +50 °C

• Enclosure / Protection: IP20 (open frame, requires cabinet mounting)

Physical & Installation Specs

• Net Weight: ~22 kg

• Frame / Format: F-frame power module

• Cooling: Internal forced-air cooling

• Mounting Orientation: Vertical installation with cabinet airflow management

Interface & Connectivity

• Power Terminals: AC input, DC link, motor output connections

• Control Interface: DRIVE-CLiQ port for communication, diagnostics, and integration

• Filter Terminals: Built-in line filter connections included
