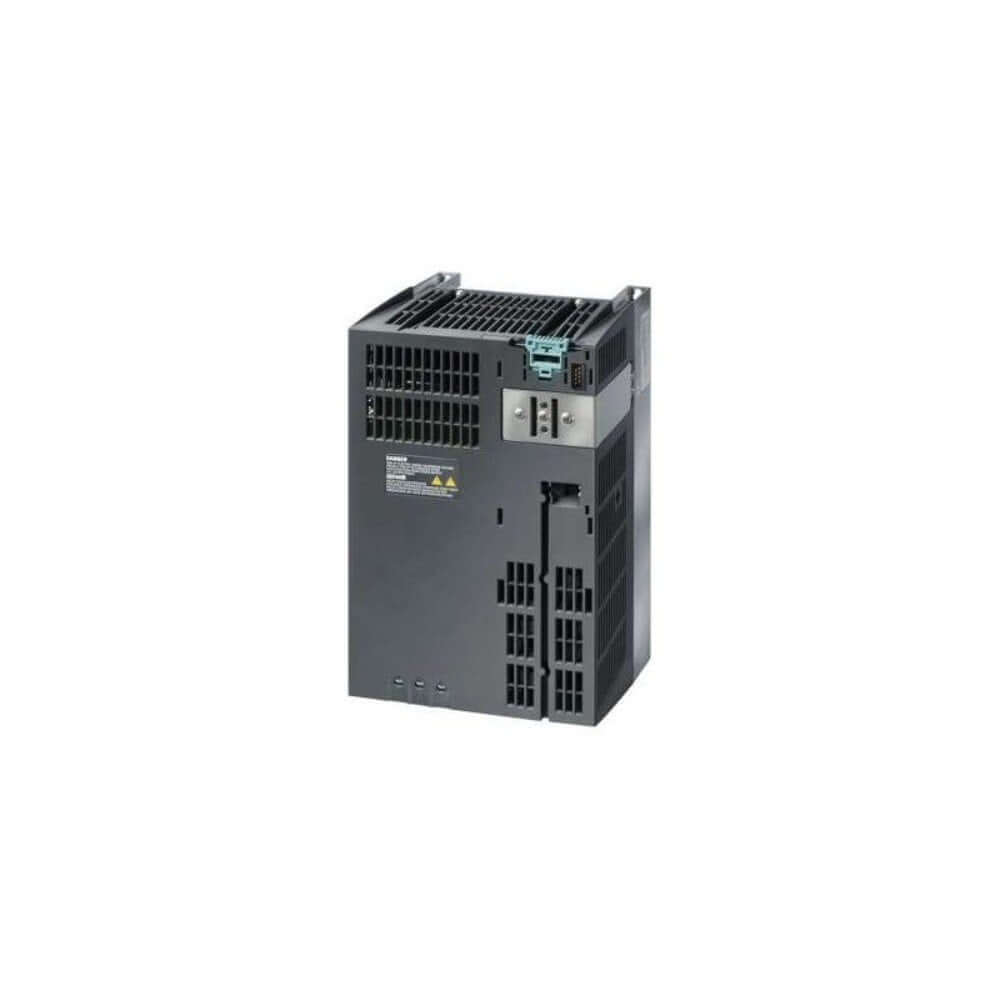

6SL3225-0BE25-5AA1
Product Overview
Model: 6SL3225-0BE25-5AA1
Classification: SINAMICS G120 Power Module (PM250) with Integrated Class A Filter & Regeneration Capability
Purpose: Power conversion module in the G120 family. Accepts 3-phase AC input, converts it to DC, then outputs AC to drive a motor. Comes with integrated Class A EMI line filter and capability for regenerative operation.
Electrical & Operational Specifications
-
Input Voltage: 3-phase, 380-480 V AC, ±10%
-
Frequency Range: 47–63 Hz
-
High Overload Power: 5.5 kW at 200% for 3 s
-
Low Overload Power: 7.5 kW at 150% for 3 s (110% for 57 s, 100% for 240 s)
-
Ambient Operating Temperature: 0 °C to +50 °C
-
Protection / Enclosure: IP20 (open / frame type, without Control Unit and Backplane)
-
Form Factor / Dimensions: 334 × 189 × 185 mm (HxWxD)
-
Net Weight: ~7.5 kg
Interface & Connectivity
-
Motor Output / Power Terminals: Standard G120 DC link and motor output connections
-
Control Interface: DRIVE-CLiQ for module control & diagnostics
-
Filter & Regeneration: Integrated Class A line filter; regenerative capability (if configured)
Summary Table
| Feature | Specification |
|---|---|
| Model | 6SL3225-0BE25-5AA1 |
| Function | G120 PM250 Power Module with Filter |
| Input Voltage | 3 AC, 380-480 V ±10% |
| High Overload Power | 5.5 kW @ 200% 3 s |
| Low Overload Power | 7.5 kW @ 150% 3 s |
| Operating Temp | 0 to +50 °C |
| Protection | IP20 |
| Dimensions (HxWxD) | 334 × 189 × 185 mm |
| Weight | ~7.5 kg |
| Interfaces | DRIVE-CLiQ; power & filter connections |
