6SL3210-5BB17-5UV1
Product Overview

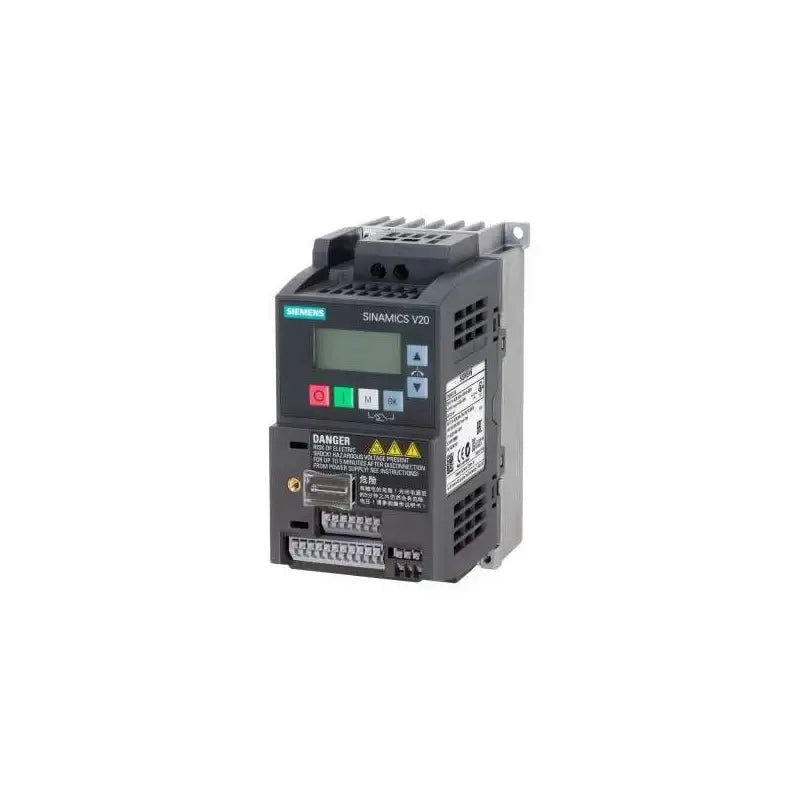

The Siemens SINAMICS V20 (6SL3210-5BB17-5UV1) is a compact, reliable, and economical single-phase input variable frequency drive (VFD) designed for basic motor control applications. Operating on a 200–240 V AC single-phase supply, this model provides 0.75 kW (1 HP) of motor output power.
This unfiltered version (no integrated EMC filter) is intended for use with systems that include external filtering. The V20 series is known for its simplicity, flexibility, and rugged performance — making it ideal for small OEM machinery and process equipment. It features USS and Modbus RTU communication, built-in ECO mode, and parameter loading without power supply, offering dependable control for cost-sensitive automation needs.
Electrical & Operational Specifications
| Specification | Details |
|---|---|
| Input Voltage | Single-phase 200–240 V AC (–10% / +10%) |
| Rated Power Output | 0.75 kW (1 HP) |
| Output Current | 4.2 A nominal |
| Frequency Range | 0–550 Hz |
| Switching Frequency | 4 kHz nominal |
| Overload Capacity | 150% for 60 seconds (in 300 s duty cycle) |
| Control Modes | V/f Control, Sensorless Vector, ECO Mode |
| Integrated EMC Filter | None (External EMC filter required) |
| Fieldbus Communication | USS and Modbus RTU |
| Parameter Loading | Supported without power supply |
| Braking Function | Internal braking chopper |
Mechanical & Environmental
| Specification | Details |
|---|---|
| Enclosure Rating | IP20 (Open Type / UL Open) |
| Mounting Type | Wall or Panel Mount |
| Cooling Method | Air cooled |
| Frame Size | FSA |
| Dimensions (H × W × D) | 142 mm × 68 mm × 128 mm |
| Approx. Weight | ≈ 0.9 kg (2.0 lb) |
| Operating Temperature | -10 °C to +60 °C (derating above 50 °C) |
| Installation Altitude | Up to 1000 m (derating above 1000 m) |
| Humidity | 5–95% non-condensing |
Control & Communication
| Specification | Details |
|---|---|
| Digital Inputs | 4 Configurable |
| Digital Outputs | 2 Relay / Transistor |
| Analog Inputs | 2 (voltage or current selectable) |
| Analog Outputs | 1 (voltage) |
| Fieldbus Protocols | USS / Modbus RTU |
| Display / Interface | Built-in keypad or optional BOP-2 operator panel |
Compliance & Ratings
-
IEC/EN 61800-3 (EMC)
-
IEC/EN 61800-5-1 (Safety)
-
UL / CSA / CE Certified
-
RoHS / REACH Compliant
Applications
-
Small motors and automation systems up to 1 HP
-
Pumps, fans, and conveyors for light industrial use
-
OEM control panels with integrated external filters
-
Cost-effective drive solution for simple motion control
