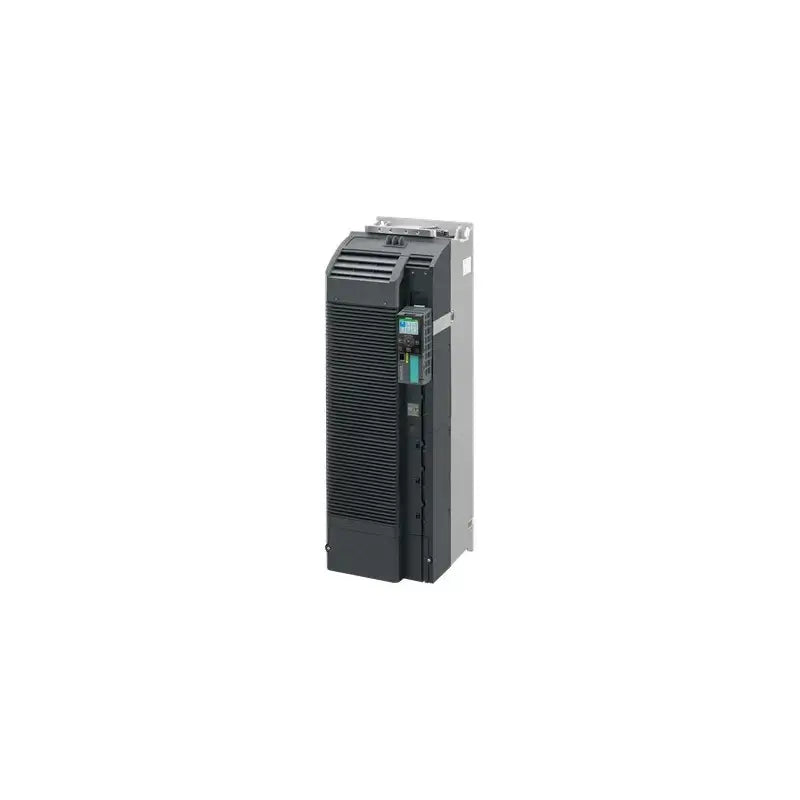

6SL3210-1PE33-7CL0
Product Overview
The Siemens SINAMICS PM240-2 (6SL3210-1PE33-7CL0) is a high-capacity, 3-phase power module designed for heavy-duty industrial motor control applications within the SINAMICS G120 and S120 drive systems. It operates on a 380–480 V AC 3-phase input and delivers approximately 200 kW (270 HP) in Low Overload (LO) mode and 160 kW (215 HP) in High Overload (HO) mode.
This model features an integrated EMC line filter (Class C3), a built-in braking chopper, and IP20 enclosure for cabinet installations. It is ideal for demanding automation environments requiring regenerative braking, precise torque control, and high-power density in a modular footprint.
Electrical & Operational Specifications
| Specification | Details |
|---|---|
| Input Voltage | 3-Phase 380–480 V AC (±10%), 47–63 Hz |
| Rated Power (Low Overload) | 200 kW (270 HP) – 150% for 3 s / 110% for 57 s (300 s cycle) |
| Rated Power (High Overload) | 160 kW (215 HP) – 200% for 3 s / 150% for 57 s (300 s cycle) |
| Input Current (LO / HO) | 365 A / 330 A |
| Output Current (Nominal) | 370 A (typical) |
| Maximum Output Current | Up to 604 A |
| Switching Frequency | 2 kHz nominal |
| Integrated Components | EMC Filter (Class C3), Braking Chopper |
| Control Compatibility | Siemens G120 / S120 Control Units (CU240, CU250, CU320 series) |
| Cooling Type | Internal forced-air (pushed through module) |
Mechanical & Environmental
| Specification | Details |
|---|---|
| Enclosure Rating | IP20 (Open Type / UL Open) |
| Mounting Type | Panel or Cabinet Mount |
| Frame Size | FSG |
| Dimensions (H × W × D) | ≈ 1000 mm × 305 mm × 357 mm |
| Approx. Weight | ≈ 70 kg (154 lb) |
| Operating Temperature | –20 °C to +50 °C (derating above 40 °C) |
| Installation Altitude | Up to 1000 m (derating above 1000 m) |
| Humidity | 5–95 % non-condensing |
Compliance & Ratings
-
IEC/EN 61800-3 (EMC)
-
IEC/EN 61800-5-1 (Safety)
-
UL / CSA / CE Certified
-
RoHS / REACH Compliant
Applications
-
High-power industrial drive systems for motors, compressors, and large conveyors
-
Automation panels requiring integrated braking and EMC filtering
-
OEM and plant integration projects with SINAMICS modular architecture
-
High-torque machinery with energy regeneration requirements
