Product Overview

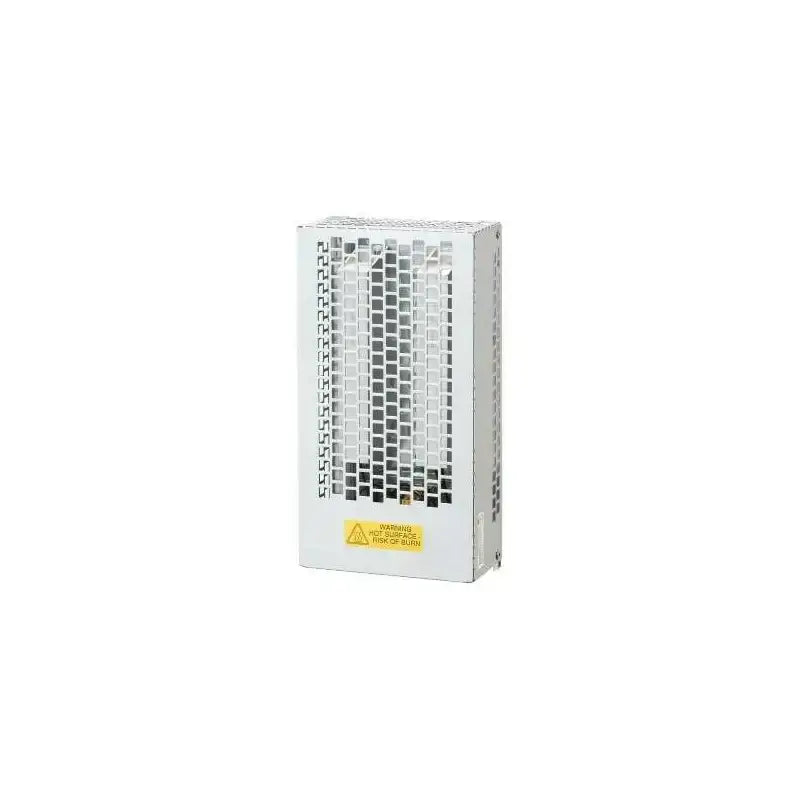

Model: 6SL3201-0BE14-3AA0
 Classification: SINAMICS Braking Resistor (Stand-Alone, for 400 V systems)
Purpose: Dissipates regenerative energy from SINAMICS drives during deceleration and braking events. Ensures stable drive operation by converting excess DC link energy into heat. Designed for 380–480 V drive systems requiring reliable braking capacity.

Electrical & Operational Specifications

• Resistance: 370 Ω

• Rated Power (Continuous): 0.075 kW

• Overload / Peak Power: 1.5 kW (12 seconds at 5% duty cycle)

• Input Voltage Range: 380–480 V AC

• DC Link Voltage Capability: ~330–840 V DC

• Connection (Power): Terminal block, conductor cross-section up to 2.5 mm²

• Temperature Switch: Normally closed (NC), 250 V AC, max 2.5 A

• Operating Ambient Temperature: –25 to +40 °C

Physical Specifications

• Dimensions (W × H × D): 105 × 295 × 100 mm

• Weight: ~1.48 kg (~3.26 lb)

• Enclosure Rating: IP20 / UL open type

• Protective Conductor: M4 screw connection on housing

Interface & Capacity

• Mounting: Compact rectangular enclosure, suitable for cabinet integration

• Cooling: Natural convection via resistor housing

• Compliance: Meets Siemens SINAMICS braking resistor standards

Summary Table
